Renewable Energy
Heat Shrinkable Cable Joints
Gala is one of the leaders in designing and manufacturing Heat Shrink Joints for the most modern PVC/PILC/XLPE/EPR Low & Medium Voltage Power Cable up to 66kV Class.The design specification and quality of our Heat Shrink Cable accessories have been upheld by the most stringent national/International standards worldwide.
Heat Shrinkable Cable Terminations
Gala offers unsurpassed technical superiority for perfect Termination of most modern PVC/PILC/XLPE/EPR Low & Medium Voltage Power Cable up to 66kV Class. We provide CLASS 1 Terminations to Electrical Industries. Our Cable Terminations are made considerably tamper proof from environmental factors as the entire length between the wire termination point and contact is safely encapsulated with this protective product.
Screened Separable Connectors
Gala’s Screened Separable Connectors are designed to connect single and three-core polymeric cables to Medium Voltage Switchgear, Transformers, RMU (Ring Main Units) and other equipment using bushings type “C” specified for 630A up to 36kV. It is made from highly modify EPDM rubber and it is protected by touch-proof outer conductive screened connected to earth.

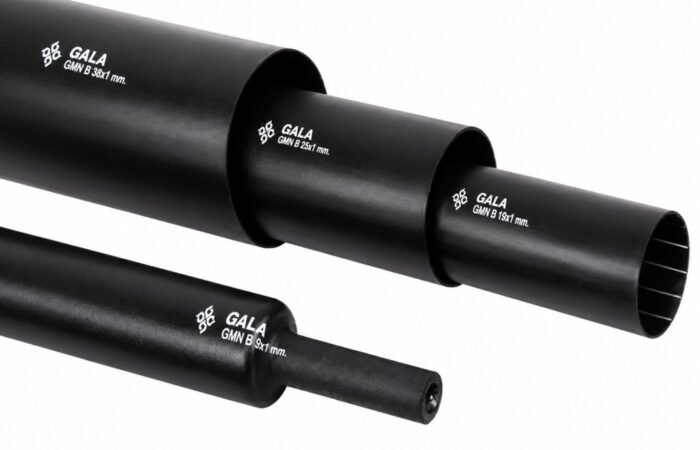

Heat Shrink Medium/Heavy Wall Tubes
Gala’s Heat Shrink Medium/Heavy Wall Tube is used to repair Cable Jackets. It is provides Insulation on the cable pulling eye. This Tubes are made from high quality cross-linked Polyolefin material.
Heat Shrink Busbar Sleeves - up to 66kV
Gala’s Heat Shrink Busbar Sleeve is heat shrinkable sleeve designed to insulate busbar systems up to 66KV and also to protect against accidental flash-over. It helps to reduces the air clearance.
Heat Shrink Tape
Gala’s Heat Shrink Tape is used for Insulation & protection of medium voltage busbar connections, where tubing cannot be used.

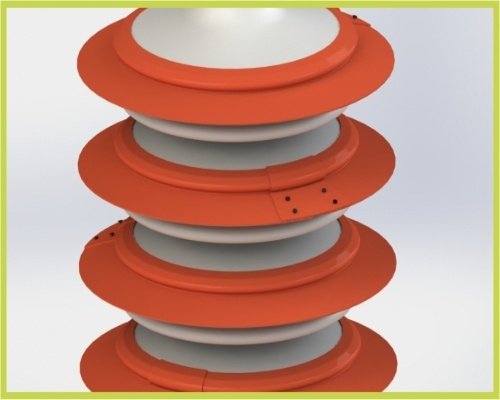

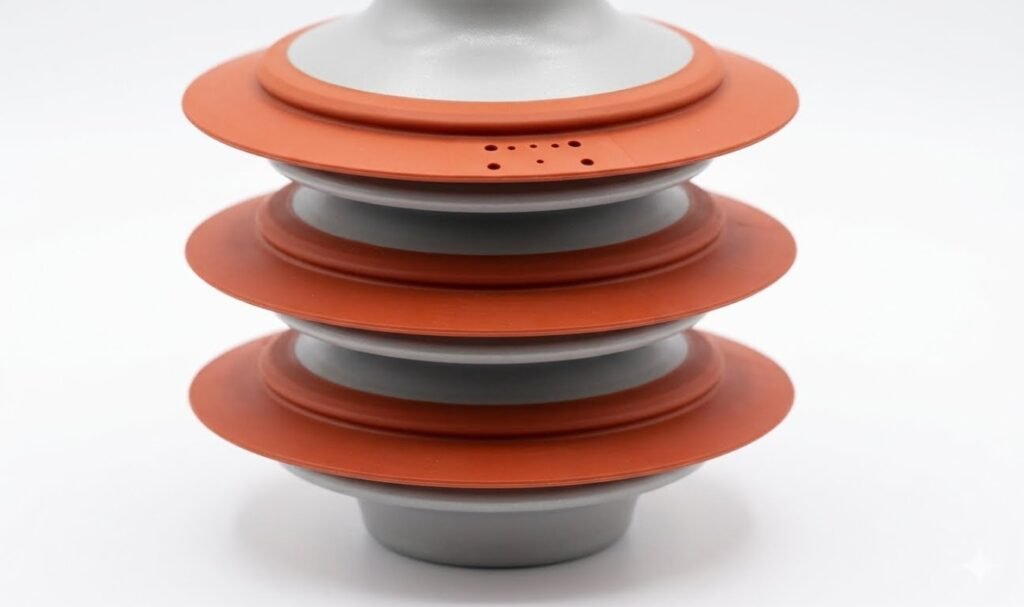

High Voltage Wraparound Creepage Extenders
Gala’s Creepage extenders have been used to prevent pollution flashover on insulators. The extenders are sealed to porcelain or glass insulators, driving the high leakage currents found in polluted areas around the edge of the extender’s skirts.
Bus/Bushing Connection Insulating Covers (Reusable)
Gala’s Bus Connection Insulating covers are designed to protect energized conductors or busbar from flashovers due to contact from birds, squirrels and other wildlife. GPFIC parts are made from a UV stable, high performance material to ensure years of reliable service.
Overhead Line Cover - Polyolefin
Gala’s Overhead Line Cover is a Medium Voltage Wrap Around Overhead Line Cover that provides retrofit insulation for overhead conductors to help prevent electrical outages caused by trees or wildlife coming into the contact with distribution lines. It is manufactured from high-quality UV resistant Polyolefin material. These covers provide a layer of electrical insulation for Phase-to-Phase and Phase-to-Ground protection from bird and animals.
Overhead Line Tube - Polyolefin
Gala’s Overhead Line Tube is a Medium Voltage Line Cover that provides insulation for overhead conductors to help prevent electrical outages caused by trees or wildlife coming into the contact with distribution lines. It is manufactured from high-quality UV resistant Polyolefin material.
Overhead Line Cover - Silicone - Inter-locking
Gala Silicon Overhead Line Covers are made from high-quality non-tracking silicon rubber that are designed for field installation over bare conductors. These covers provide a layer of electrical insulation for Phase-to-Phase and Phase-to-Ground protection from bird and animals. The GSOC provides electrical insulation, UV resistance and tracking resistance. Provides Insulation Enhancement up to 765 kV.

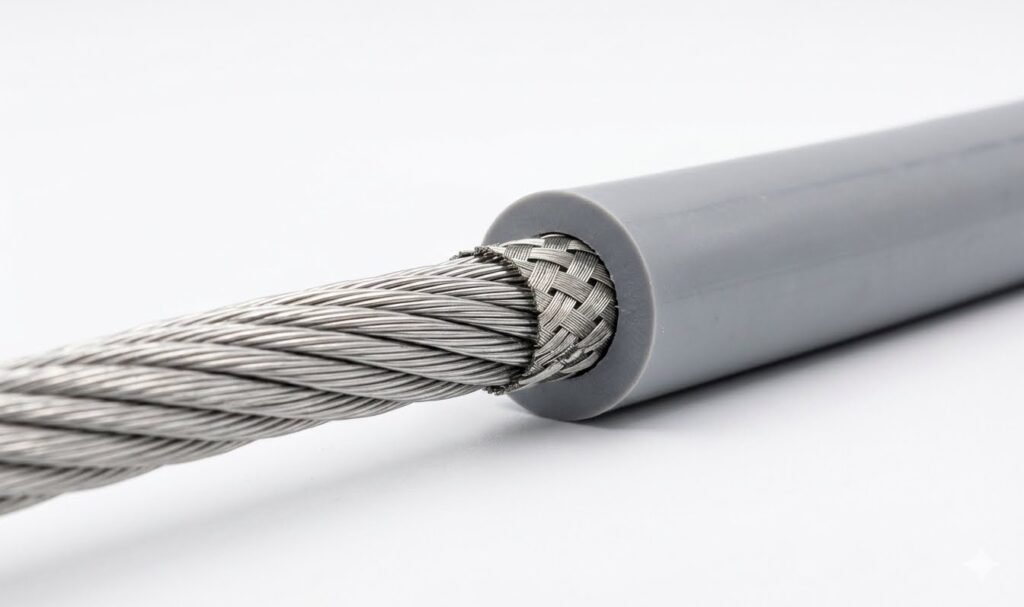

Overhead Line Cover - Silicone - Self-locking
Gala Silicon Overhead Line Covers are made from high-quality non-tracking silicon rubber that are designed for field installation over bare conductors. These covers provide a layer of electrical insulation for Phase-to-Phase and Phase-to-Ground protection from bird and animals.
Cold Shrink Tubing - EPDM
Gala Cold Shrink Tube are open ended, tubular rubber sleeves that are factory expanded and assembled onto a removable core. The core is removed after the tube has been position for installation over and inline connection, terminal lug etc.
Cold Shrink Tubing Silicon
Gala Cold Shrink Tube are open ended, tubular Silicone sleeves that are factory expanded and assembled onto a removable core. The core is removed after the tube has been position for installation over and inline connection, terminal lug etc

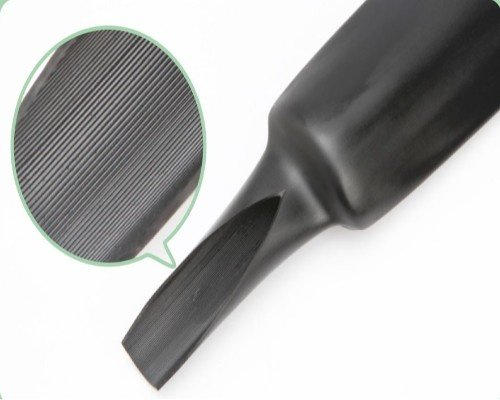

Heat Shrink Vented Thin Wall Tube
Gala’s Heat shrinkable Vented Thin Wall tube is designed to protect Wind Power Anchor Bolts, Automotive Parts, U Bolts, etc. against corrosion. This Tube is made from high-quality Cross-linked material.
