Heat Shrink Low Voltage Cable Breakout

Home / Heat Shrink Low Voltage Cable Breakout

Table of Content

Insulcover is a Wrap Around Line Cover that provides retroﬁt insulation for Overhead Conductors to help prevent electrical outages caused by trees or wildlife coming into the contact with distribution lines. It is manufactured from high quality Non-tracking Cross-linked Polyoleﬁn material. Gala Overhead Line Covers can be used in many applications to enhance the insulation up to 400 kV. Insulcover is designed to insulate existing bare lines without costly conductor replacement expenditure or additional line hardware.
Installation is easy by using the Split Insulation Tube Tool which remains stationery at single location.

Selection Chart

SELECTION CHART

Code	No. of Core	D		d		L		l		Tb	Tc
		Ds	Df	ds	df	Ls	Lf	ls	lf	f	f
		min.	max.	min.	max	min.	max	min.	min.	±10%	±10%
LV2GBB-0308 S	2	22	8	9	3	70	85	14	20	2.2	2.0
LV2GBB-0308	2	28	8	12	3	70	85	15	20	2.2	2.0
LV2GBB-0410	2	32	10	14	4	67	85	15	20	2.2	2.0
LV2GBB-0410 A	2	42	11	14	4	80	107	25	42	2.2	2.0
LV2GBB-0410 L	2	34	10	14	4	77	107	27	42	3.0	3.0
LV2GBB-0610	2	30	10	19	6	110	145	50	60	2.0	2.0
LV2GBB-0610 L	2	30	8	19	6	135	165	50	60	2.5	2.0
LV2GBB-0615	2	45	15	18	5.5	90	110	25	43	3.0	3.5
LV2GBB-0720	2	60	20	24	7	95	120	25	34	3.0	2.5
LV2GBB-0720 A	2	70	22	30	8	90	120	25	34	3.0	2.5
LV2GBB-0830	2	65	30	25	8	120	150	50	60	2.0	1.8
LV2GBB-0930	2	70	30	27	8	120	150	50	65	3.0	3.0
LV2GBB-1565	2	125	65	46	15	110	130	40	55	2.5	2.2
LV2GBB-2075	2	175	70	40	20	150	210	60	80	2.5	2.2
LV2GBB-2075 A	2	200	70	55	20	155	210	62	80	2.5	2.2
LV2GBB-4135	2	240	135	65	24	190	245	60	104	2.3	2.0
LV2GBB-55175	2	255	175	86	55	160	200	50	80	2.8	2.5
LV2GBB-55175 A	2	370	175	156	55	150	200	50	80	2.8	2.5
LV3GBB-0308	3	32	8	12	2.8	90	104	20	28	2.2	1.8
LV3GBB-0309	3	32	9	12	3	85	100	15	24	2.0	1.7
LV3GBB-0413	3	36	14	15	4	80	100	15	21	2.2	2.0
LV3GBB-0413 A	3	45	14	15	4	80	100	15	21	2.2	2.0
LV3GBB-0820	3	60	20	25	8	160	184	45	60	3.3	2.7
LV3GBB-0820 A	3	70	20	27	8	155	184	40	60	3.3	2.7
LV3GBB-1330	3	80	30	36	13	185	215	60	75	3.6	3.3
LV3GBB-1330 A	3	100	30	39	13	185	215	60	75	3.6	3.3
LV3GBB-1330 A	3	100	30	39	13	185	215	60	75	3.6	3.3
LV3GBB-2145	3	110	45	55	21	200	235	70	88	3.5	2.9
LV3GBB-2145 A	3	125	45	57	21	190	230	65	88	3.5	2.9
LV3GBB-1760	3	119	60	45	17	140	185	60	85	4.5	4.5
LV3GBB-1760 A	3	150	60	57	17	130	185	55	85	4.5	4.5
LV3GBB-2755	3	140	56	68	28	215	260	75	90	3.5	3.5
LV3GBB-2755 A	3	180	58	68	29	200	260	70	90	3.5	3.5
LV3GBB-3060	3	200	60	70	30	190	250	70	85	4.0	3.0
LV4GBB-0209	4	28	9	9	2.5	90	115	15	20	2.2	1.7
LV4GBB-0309	4	28	9	9	2.6	64	75	22	28	2.4	2.1
LV4GBB-0312S	4	30	12	10	3	80	100	15	25	2.4	1.7
LV4GBB-0312	4	40	12	12	3	78	100	15	25	2.4	1.7
LV4GBB-0415	4	41	16	14	4	75	100	15	23	2.4	1.7
LV4GBB-0415 A	4	50	17	17	4	75	95	12	23	2.4	1.7
LV4GBB-0522	4	50	22	18	5	95	115	30	37	2.5	2.2
LV4GBB-0620*	4	55	20	20	6	140	150	30	38	3.0	2.5
LV4GBB-0821	4	57	26	20	7	140	170	32	48	3.5	2.5
LV4GBB-0825 N	4	68	25	25	8	155	188	35	48	3.5	2.3
LV4GBB-0925	4	70	30	25	9	155	190	35	48	3.7	2.6
LV4GBB-1130	4	80	31	32	10	150	190	28	47	3.7	2.6
LV4GBB-1130L	4	80	30	35	11	180	210	35	52	3.7	2.6
LV4GBB-1334	4	90	42	35	13	170	210	35	52	3.7	2.6
LV4GBB-1334 A	4	110	44	35	13	170	208	40	51	3.7	2.6
LV4GBB-2454	4	125	44	40	14	170	208	30	51	3.7	2.6
LV4GBB-2880	4	180	80	70	28	215	260	75	90	2.5	2.5
LV4GBB-4080	4	180	80	70	40	200	260	75	95	3.7	2.8
LV4GBB-1880	4	215	80	50	18	150	175	30	45	2.5	2.5
LV4GBB-1880 SA	4	180	80	63	18	150	175	35	45	2.5	2.5
LV4GBB-1880 S	4	180	80	50	18	155	175	35	45	2.5	2.5
LV5GBB-0308	5	32	8	10	3	95	115	22	28	2.1	1.7
LV5GBB-0311	5	32	11	10	3	55	75	15	20	2.3	2.0
LV5GBB-0415	5	50	16	15	4	85	110	21	33	3.2	2.6
LV5GBB-0415 A	5	57	17	15	4	80	110	21	33	3.2	2.6
LV5GBB-0524	5	55	24	18	5	145	155	40	45	3.3	2.6
LV5GBB-0832	5	80	32	26	8	155	190	55	65	3.3	2.8
LV5GBB-0832 A	5	85	37	25	7	100	140	30	45	3.2	2.6
LV6GBB-0412	6	44	12	13	4	55	82	20	30	2.2	2.0
LV6GBB-0737	6	85	37	25	7	100	138	30	46	3.2	2.6
LV7GBB-0737	7	95	37	26	7	100	135	40	55	2.7	2.6
LV7GBB-1845	7	118	46	35	19	110	145	32	52	4.3	3.0

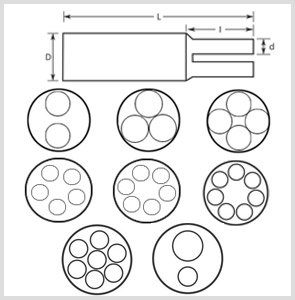

D,d : Internal Diameter ; s : as supplied ; f : after free recovery ; Tb,Tc : Thickness of body & core ** New Designs

CODE	No of Core	Ds		d1		d2
		Ds	Df	ds	df	ds	df
		min	max	min	max	min	max
LV2GBB-61820	2	65	20	44	18	25	6
LV4GBB-1880(2X2)*	4	215	80	75	18	45	18
LV5GBB-5725	5	65	25	23	7	16	5
LV5GBB-7939	5	90	39	30	9	24	7
LV5GBB-7939 A	5	100	39	35	9	16	7

CODE	L		l1		l2		Tb	Tc	Tc1
	Lf	Ls	lf	ls	ls	lf	f	f	f
	min	min	min	min	min	min	±10%	±10%	±10%
LV2GBB-61820	105	204< 0/td>	28	40	28	40	4.0	3.1	3.0
LV4GBB-1880(2X2)*	150	175	35	45	35	45	2.5	2.5	2.0
LV5GBB-5725	205< 0/td>	150	40	51	35	40	2.5	2.5	2.0
LV5GBB-7939	133	185	30	50	30	50	2.7	2.7	2.7
LV5GBB-7939 A	133	185	30	50	30	50	2.7	2.7	2.7

Technical Specification

Properties	Value	standard
Physical
Tensile Strength	12 N/mm² (MPa) (Min.)	ASTM D638
Ultimate Elongation	350% (Min.)	ASTM D638
Density	1.05 ± 0.2 gm/cm³	ASTM D792
Hardness	45 ± 10 Shore D	ASTM D2240
Water Absorption	0.2% (Max.)	ASTM D570
Thermal
Accelerated Ageing (120°C for 500 Hrs)	—	ASTM D2671
Tensile Strength	11 N/mm² (MPa) (Min.)	ASTM D638
Ultimate Elongation	300% (Min.)	ASTM D638
Low Temperature Flexibility (-40°C for 4 Hrs.)	No Cracking	ASTM D2671
Heat Shock (250°C for 30 Min.)	No Cracking or Flowing	ESI 09-11
Shrink Temperature	125°C	IEC 216
Continuous Temperature Limit	-40°C to +110°C	IEC 216
Electrical
Dielectric Strength	12 KV/mm (Min.)	ASTM D149
Volume Resistivity	1 × 10¹⁴ Ohm·cm (Min.)	ASTM D257
Dielectric Constant	5 (Max.)	ASTM D150
