Termi Cap

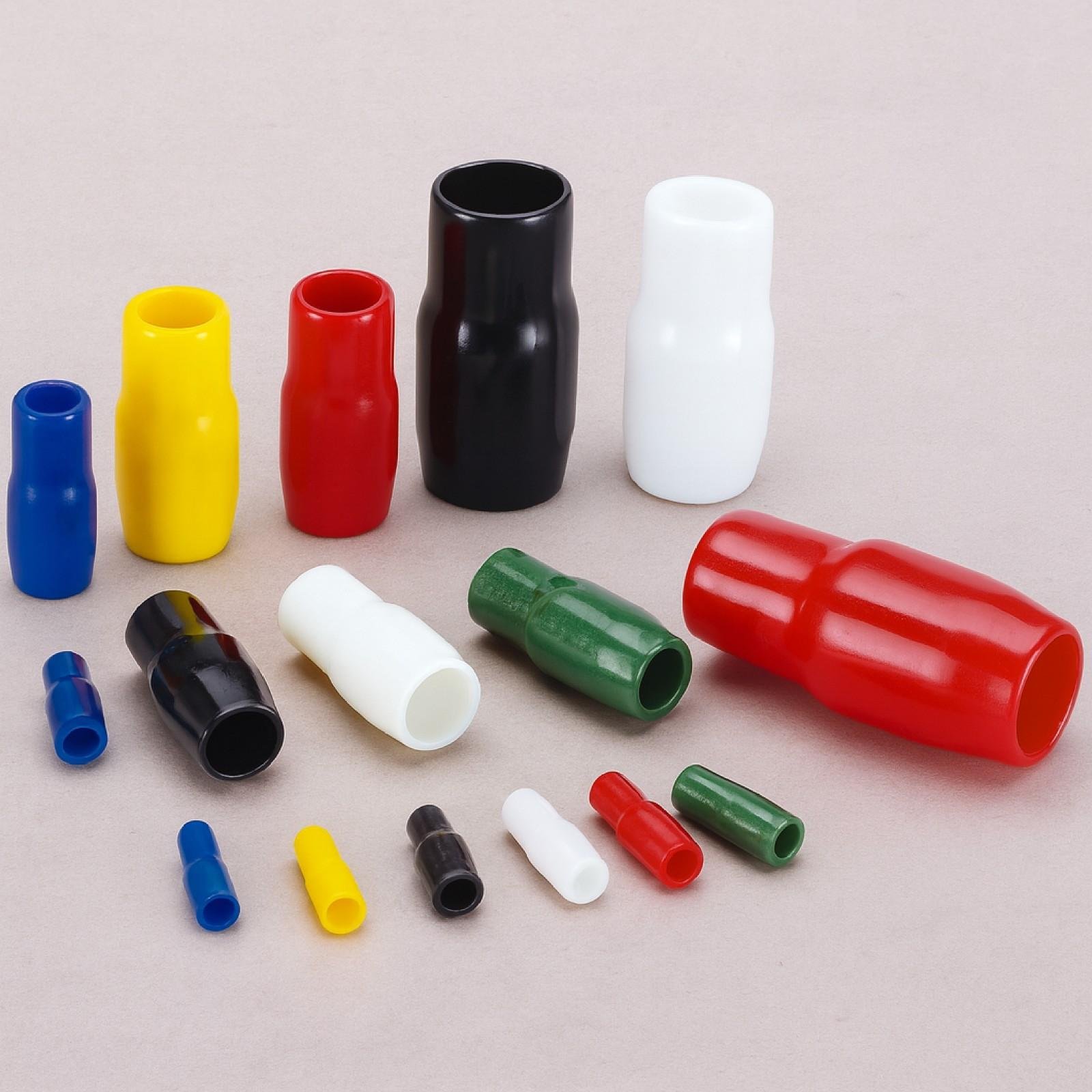

The Termi Cap, made from high-quality Polyvinyl Chloride, protects cable ends by sealing out moisture, dust and contaminants. It offers excellent insulation, durability and temperature resistance, making it deal for various environments and ensuring easy, reliable installation.
Standards :
Tested to ANSI C 37.20.2 Standards for medium voltage switchgear application to 36kV.
Features & Benefits
- Termi Cap is made from high quality flexible PVC (Polyvinyl Chloride) Material.
- Used for insulating and protecting wire end terminal.
- Available in customs size, shape and colours.
- Ideal for insulating & colour coded identification of terminal crimped on to the power cable.
Diagram
Selection Chart
| TYPE | D1 (mm) | D2 (mm) | D3 (mm) | L (mm) | F (mm) |
|---|---|---|---|---|---|
| TCV 12 | 3.2 | 3.5 | 3 | 15 | 8 |
| TCV 21 | 3.5 | 4.5 | 3.8 | 18 | 10 |
| TCV 50 | 4.5 | 5.5 | 4.5 | 21 | 10 |
| TCV 53 | 5 | 6 | 5 | 25 | 10 |
| TCV 60 | 8 | 10 | 8 | 27 | 13 |
| TCV 221 | 9.5 | 12 | 8 | 30 | 16 |
| TCV 381 | 12 | 14 | 10 | 35 | 18 |
| TCV 601 | 14 | 16.5 | 14 | 42 | 23 |
| TCV 100 | 18 | 22 | 16 | 54 | 26 |
| TCV 501 | 22 | 24 | 22 | 67 | 33 |
| TCV 2501 | 26 | 37 | 26 | 79 | 38 |
| TCV 3251 | 30 | 37.5 | 30 | 78 | 38 |
Technical Specification
| TEST DESCRIPTION | RECORDED VALUE | TEST METHOD |
|---|---|---|
| Dielectric Strength | 16 kV/mm (Min.) | ASTM D149 |
| Tensile Strength | 12 N/mm² (Min.) | ASTM D638 |
| Elongation | 350% (Min.) | ASTM D638 |
| Density | 1.23 gm/cm³ | ASTM D792 |
| Hardness | 65 ± 5 Shore A | ASTM D2240 |
| Continuous Operating Temp. | -20°C to 115°C | – |
Certificates
FAQs
1. What is a Screened Separable Connector?
A Screened Separable Connector is a medium-voltage cable accessory used to connect power cables to transformers, switchgear, or other equipment. It is fully screened and separable, allowing safe installation, disconnection, and maintenance.
2. What voltage levels are Screened Separable Connectors used for?
They are commonly used for 3.6 kV to 36 kV medium-voltage applications, depending on the connector design and standards.
3. Where are Screened Separable Connectors typically used?
