Solder Sleeve
Table of Content

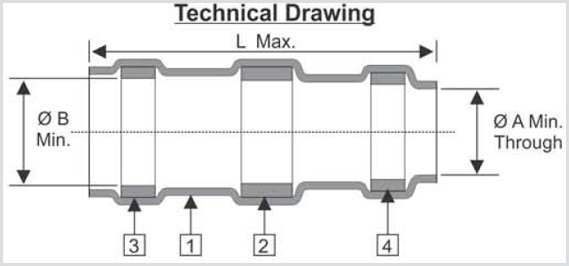

Materials
1. Insulation Sleeve : Heat Shrinkable , radiation cross-linked modified polyfin.
2. Solder Perform with Flux :
SOLDER : As per ANSI/J-STD-006.
SOLDER : As per ANSI/J-STD-006.As per ANSI/J-STD-006.
3. Meltable Sealing Ring : Thermally stabilized thermoplastic.(size 3,5,6,7,9,11); natural(size 13)
4. Meltable Sealing Ring : Thermally stabilized thermoplastic.(size 3,5,7,11); gray (size 6);natural(size 9,13)
Applications
- These controlled soldering devices are designed for termination of a bare or tin-plated copper shield on cable having an insulation rated for at least +85oC,meeting the dimensional criteria listed in the table above.
- Temperature range : -55o C to +125o C
- When installed properly ,it will meet the requirments for best results ,prepare the cable as shown:
Diagram
Selection Chart
| Product Name | Product Dimensions | Prepared Cable Directions | |||||||
|---|---|---|---|---|---|---|---|---|---|
| ØA | ØB | ØL | ØD | ØE | ØF | ØG | H | J | |
| min | min | max | max | min | min | max | |||
| GSS-3 | 2.50 [0.098] | 3.00 [0.118] | 24.5 [0.965] | 3.00 [0.118] | 1.50 [0.060] | 1.00 [0.040] | 2.50 [0.098] | 6.0±0.5 [0.236±0.020] | 7.0±0.5 [0.726±0.020] |
| GSS-5 | 4.30 [0.170] | 4.80 [0.189] | 29.3 [1.154] | 4.80 [0.189] | 2.00 [0.079] | 1.50 [0.059] | 4.30 [0.170] | 8.0±0.5 [0.315±0.020] | 9.0±0.5 [0.354±0.020] |
| GSS-6 | 6.00 [0.236] | 6.70 [0.264] | 32.00 [1.260] | 6.70 [0.264] | 3.30 [0.130] | 2.80 [0.110] | 6.00 [0.236] | 9.0±0.5 [0.354±0.020] | 10.0±0.5 [0.394±0.020] |
| GSS-7 | 6.80 [0.268] | 7.30 [0.287] | 32.50 [1.280] | 7.30 [0.287] | 3.30 [0.130] | 2.80 [0.110] | 6.80 [0.268] | 10.0±1.0 [0.394±0.040] | 11.0±1.0 [0.433±0.040] |
| GSS-9 | 8.70 [0.343] | 9.20 [0.362] | 35.50 [1.398] | 9.20 [0.362] | 4.50 [0.177] | 4.00 [0.157] | 8.70 [0.343] | 11.0±1.0 [0.433±0.040] | 12.0±1.0 [0.472±0.040] |
| GSS-11 | 10.80 [0.425] | 11.50 [0.453] | 35.50 [1.398] | 11.50 [0.453] | 4.50 [0.177] | 4.00 [0.157] | 10.80 [0.425] | 12.0±1.0 [0.472±0.040] | 13.0±1.0 [0.512±0.040] |
| GSS-13 | 13.00 [0.512] | 15.10 [0.594] | 45.50 [1.791] | 15.10 [0.594] | 7.00 [0.276] | 6.50 [0.256] | 13.00 [0.512] | 16.0±1.0 [0.630±0.040] | 17.0±1.0 [0.670±0.040] |
Certificates
FAQs
1. What is a Heat Shrink Shroud?
A Heat Shrink Shroud is a protective sleeve made from cross-linked polymer material that shrinks when heat is applied. It provides insulation, sealing, and mechanical protection for cables, joints, and terminations.
2. How does a Heat Shrink Shroud work?
When heat is applied using a heat gun or torch, the shroud shrinks uniformly and tightly wraps around the cable or joint, creating a secure and sealed covering.
When heat is applied using a heat gun or torch, the shroud shrinks uniformly and tightly wraps around the cable or joint, creating a secure and sealed covering.
3. What material is Heat Shrink Shroud made of?
It is typically made from cross-linked polyolefin material, often containing carbon black for UV resistance and weather protection.
