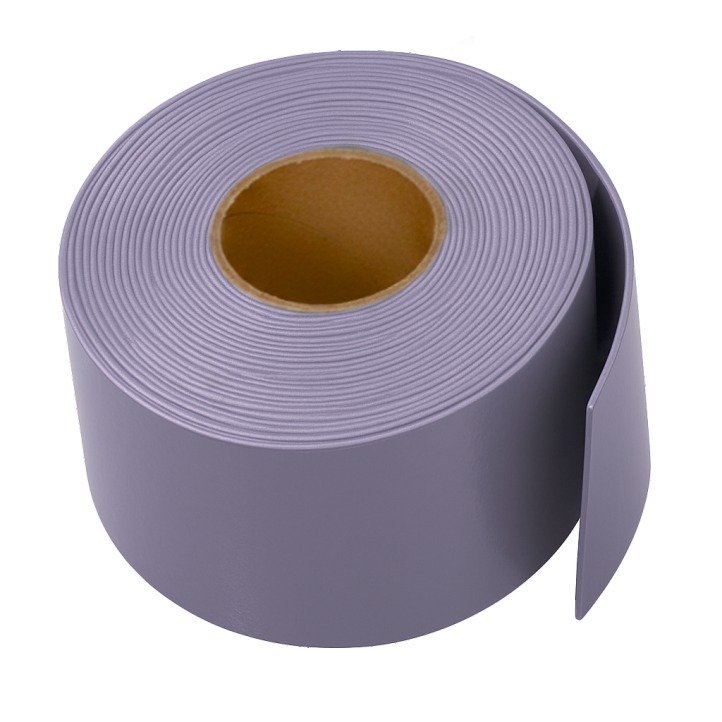

Self Fusing Tape
Gala Self Fusing Tape is electrical tape made of premium grade silicone rubber. It is an ideal tape for
insulation protection in the power industry, suitable for Extra High voltage and can work continuously
at H-class high temperature 180°C. The tape has good insulation, moisture resistant, flame retardant
and sealing property.
Features & Benefits
- Excellence insulation, ozone, UV and aging resistant.
- Easy to install by hand, no need heating and special tools.
- High reliability with excellent physical, chemical and electrical property.
- Self fusing without adhesive, removed without residue, convenient for maintenance.
- Flame retardant.
- Mechanical vibration reduction.
- Colour : Grey
Diagram
Selection Chart
| Gala Code | Width (mm) | Thickness (mm) | Length (m) |
|---|---|---|---|
| GSSFT-01 | 63.5 ± 1.5 | 0.76 ± 0.05 | 11 ± 0.2 |
* Self fusing tape required quantity depends on the conductor size.
Technical Specification
| Properties | Typical Value | Test Method |
|---|---|---|
| Tensile Strength | ≥ 5.5 N/mm² (MPa) | ASTM D412 |
| Elongation | ≥ 300% | ASTM D412 |
| Hardness | 40 ± 5 Shore A | ASTM D2240 |
| Continuous Operating Temperature | -60°C to 250°C | IEC 216 |
| Dielectric Strength | ≥ 25 kV/mm | ASTM D149 |
| Density | ≥ 1.1 g/cm³ | ASTM D792 |
| Volume Resistance | 1 x 10¹⁴ Ohm.cm (min.) | ASTM D257 |
Appliation Range
- Insulation protection to substation, bare parts of the power plant and bus-bar in main network.
- Insulation and fireproof for large cables and irregular shape conductor.
- Insulation protection for power system in places where fire can’t be used, like mine, oil field and chemical industry.
- Insulation protection and fireproof of cable joint and bus-bar.
