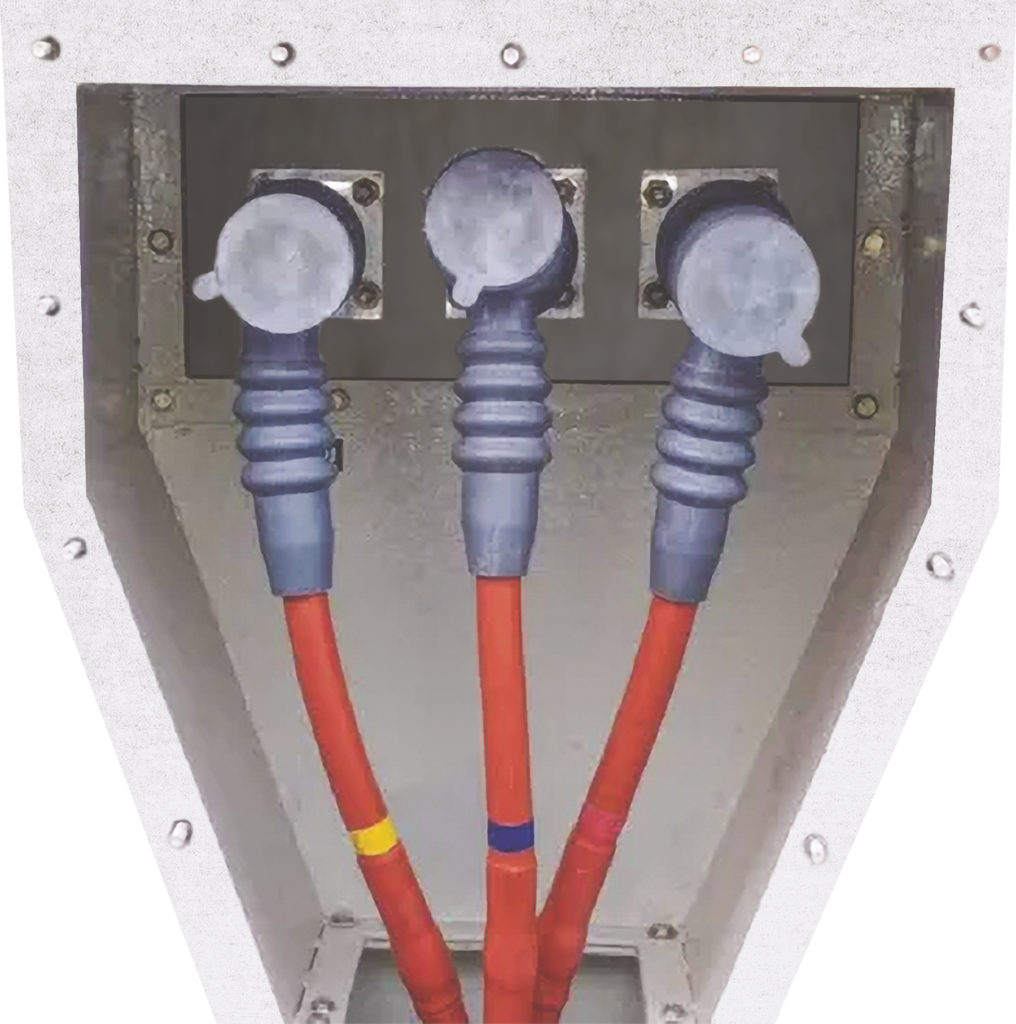

Reusable Insulating Boots
Reusable Insulating Boots are designed to be used with all types of Terminations and is suitable for use with PILC / XLPE Cables. The shrouds gives required flexibility and electrical characteristics to ensure sufficient di-electric strength is provided between Phase to Phase and Phase to Ground.
The Boots are easy to install and is designed for disconnection and reusability. It also provides complete sealing of the Cable, cable lug, and the bushing and thus prevents flash-over due to rodent and high humidity.
Features & Benefits
- Easy to install
- Suitable for Cable range from 25 sq mm to 400 sq mm
- Fits Sector Shaped Cables
- Facilitates Direct Voltage Testing
- Reusable
- Economically Viable Solution for 11 kV and 22 kV
- Prevents Flash-over Due to Humid Environment in HT Cable Entry Box
- Protection from Short Circuit Due to Intervention by Reptiles,Birds,Animals
- Suitable to Use RMU Having Bushing of C Type With Compact Design.
Diagram
Selection Chart
| Product Code | ID – Bushing Entry | ID – Cable Entry | L1 | L2 |
|---|---|---|---|---|
| GRRB – 1 | 44.0 mm (min.) | 20.0 mm (min.) | 175.0 mm (min.) | 170.0 mm (min.) |
Technical Specification
| AC High Voltage | Basic Impulse Level | DC High Voltage | Bushing Diameter |
|---|---|---|---|
| 35 kV for 5 Minute | 95.0 kV | 48 kV for 30 Minute | 46 – 70mm |
Certificates
FAQs
1. What is a Screened Separable Connector?
A Screened Separable Connector is a medium-voltage cable accessory used to connect power cables to transformers, switchgear, or other equipment. It is fully screened and separable, allowing safe installation, disconnection, and maintenance.
2. What voltage levels are Screened Separable Connectors used for?
They are commonly used for 3.6 kV to 36 kV medium-voltage applications, depending on the connector design and standards.
3. Where are Screened Separable Connectors typically used?
Related Products

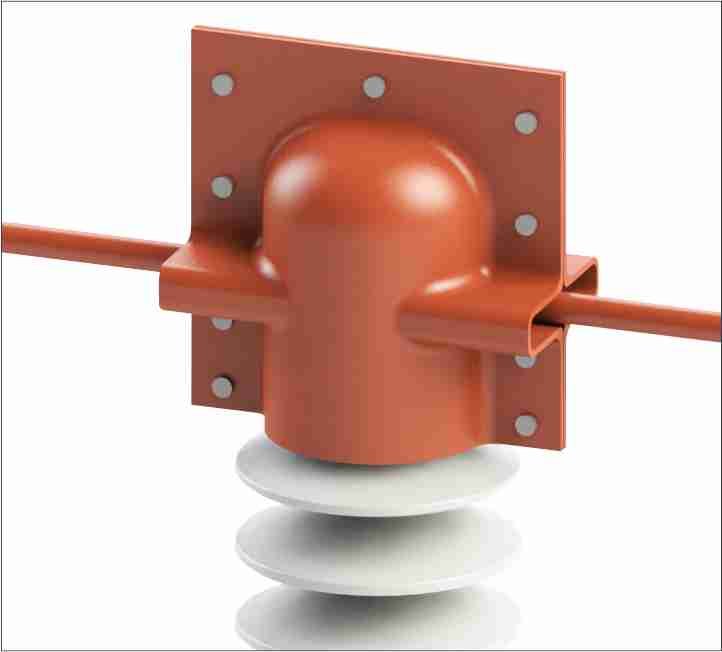

Polyolefin Overhead Line Cover
