Cable End Caps - Live End Caps
❮
❯
×
![]()
Insulcap-Live (GLEC) are Heat Shrinkable Caps, used to seal the live cables. The caps are manufactured from high quality cross linked polyolefin material.
Each core is separately sealed using small end caps. Finally a thick wall outer heat shrink cap is applied marked with a live flash symbol.
Installation Instructions
SELECTION CHART
| Description | 4 x 1.5-6 mm² | 4 x 4-35 mm² | 4 x 50-150 mm² | 4 x 150-300 mm² |
|---|---|---|---|---|
| Outer cap (1 Pc.) | GLEC 101AL | GELC 201 L | GLEC 301 L | GLEC 401 L |
| Ds (min.) | 25 | 40 | 55 | 75 |
| Df (max.) | 8 | 15 | 25 | 35 |
| Ls (min.) | 75 | 120 | 170 | 180 |
| Tf (10%) | 2.5 | 3.3 | 3.8 | 4.0 |
| Inner cap (4 Pcs.) | GLEC 001S | GLEC 001 | GLEC 101 | GLEC 201 |
| Ds (min.) | 6 | 12 | 20 | 40 |
| Df (max.) | 2 | 4 | 7.5 | 15 |
| Ls (min.) | 25 | 40 | 55 | 90 |
| Tf (10%) | 2.0 | 2.3 | 2.3 | 3.3 |

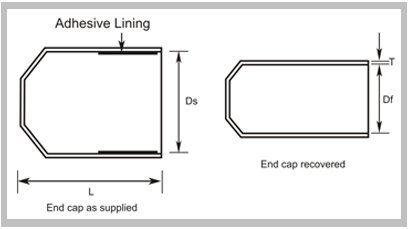

D : Internal Diameter ; s : as supplied ; f : after free recovery
TECHNICAL SPECIFICATION
| PROPERTIES | VALUE | STANDARD |
|---|---|---|
| Physical | ||
| Tensile Strength | 12 N/mm² (MPA)(min.) | ASTM D638 |
| Ultimate Elongation | 350% (Min.) | ASTM D638 |
| Water Absorption | 0.2 % (max.) | ASTM D570 |
| Thermal | ||
| Accelerated Ageing | (120°C for 500 Hrs) | ASTM D2671 |
| Tensile Strength | 11 N/mm² (Mpa) (min.) | ASTM D 638 |
| Ultimate Elongation | 300% (Min.) | ASTM D638 |
| Heat Shock (250°C for 30 Min.) | No Cracking or flowing | ESI 09-11 |
| Continuous Temperature limit | -40°C to + 100°C | IEC 216 |
| Electrical | ||
| Dielectric Strength | 12 KV/mm. (Min.) | ASTM D149 |
| Volume Resistivity | 1 x 10¹⁴ Ohm.cm(min.) | ASTM D257 |
| Dielectric Constant | 5 (Max.) | ASTM D150 |
