GXSS - 1236 - Series - Heat Shrinkable Straight Through Joints (Waterproof) Suitable for Single Core XLPE/EPR/PVC Insulated Cables for upto 36kv
Descriptions : GXSS/1236-Series kits are Heat Shrinkable Straight Through Jointing kits designed for single core extruded dielectric, shielded, armoured & unarmoured cables upto 36kV rated voltage (12kV, 15-24kV & 36kV usage).
Cable Components
| Descriptions |
|---|
| Outer Sheath |
| Copper Screen |
| Armour |
| XPLE Insulation |

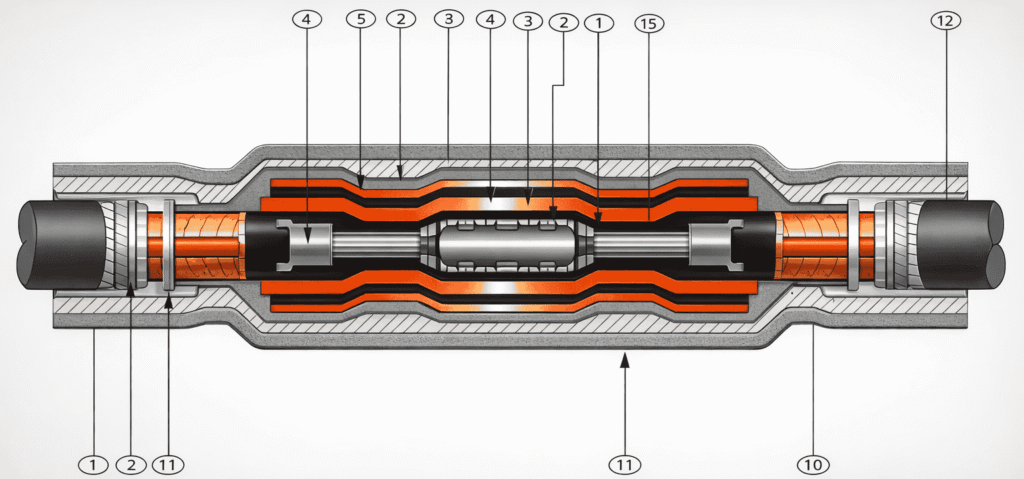

Kit Components
| Descriptions | QTY |
|---|---|
| lnline Connection Ferrule | 1 No |
| Heat Shrinkable Stress | |
| 12 kV | 2 Nos |
| 24 kV | 1 No |
| 36 kV | 4 Nos |
| Heat Shrinkable Stress control Tubing | 1 No |
| H. S. Insulating Tubing | 1 min. 500 V Dc |
| 12 kV | 1 No |
| 24 kV | 1 No |
| 36 kV | 2 Nos |
| H. S. Dual Wall Tubing | 1 No |
| Stress Control Mastic | 1 No |
| Copper Woven Flexible Mesh Tape | 1 Roll |
| G. I. Mesh | 1 Roll |
| Red Insulating Mastic Tape | |
| 12 kV | 1 No |
| 24 kV | 2 Nos |
| 36 kV | 2 Nos |
| Spring Clamp/Solder Flux | 2 Nos |
| H. S. Outer Jacketing Sleeve | 1 No |
Installation aids & Accessories (Part of std. Kits)
| Descriptions | QTY |
|---|---|
| Copper Binding Wire | 1 Roll |
| Aloxite Emery Tape | 1 No |
| Silicon Grease | 2 Nos |
| Cleaning Tissue | 2 Nos |
| Mopping Cloth | 1 No |
| Installation Instruction Manual | 1 No |
Electrical Performance
| Tests | 12 kv System (6.6/6.6 KV,6.35/11KV) | 15-24kV System (8.7/15KV,11/11KV,12.7/22KV) | 36kV (19/33KV) |
|---|---|---|---|
| A. C. Dry Withstand voltage | 35KV/1 minute | 50KV/1 Minute | 75KV/1 Minute |
| D. C. Withstand 30 Minute | 48 KV | 96 KV | 144 KV |
| Lightening Impulse withstand Voltage | 75 KV(min) | 125 | 170 KV |
| Partial Discharge | 12.7 kV < 5 Pc | 25 Kv < 5 Pc | 38 Kv < 5 Pc |
Ordering Informations
| 12 KV System | 15 – 24 KV System | 36 KV System | |||
|---|---|---|---|---|---|
| Cable size (sq. mm) | Kit Code | Cable size (sq. mm) | Kit Code | Cable size (sq. mm) | Kit Code |
| 16-50 | GXSS-11 | 16-50 | GXSS-21 | 25-50 | GXSS-31 |
| 70-120 | GXSS-12 | 70-120 | GXSS-22 | 70-185 | GXSS-32 |
| 150-300 | GXS-13 | 150-300 | GXS-23 | 240-500 | GXS-33 |
| 400-630 | GXS-14 | 400-630 | GXS-24 | 630-800 | GXS-34 |
| 800-1000 | GXS-15 | 800-1000 | GXS-25 | 1000 | GXS-35 |
