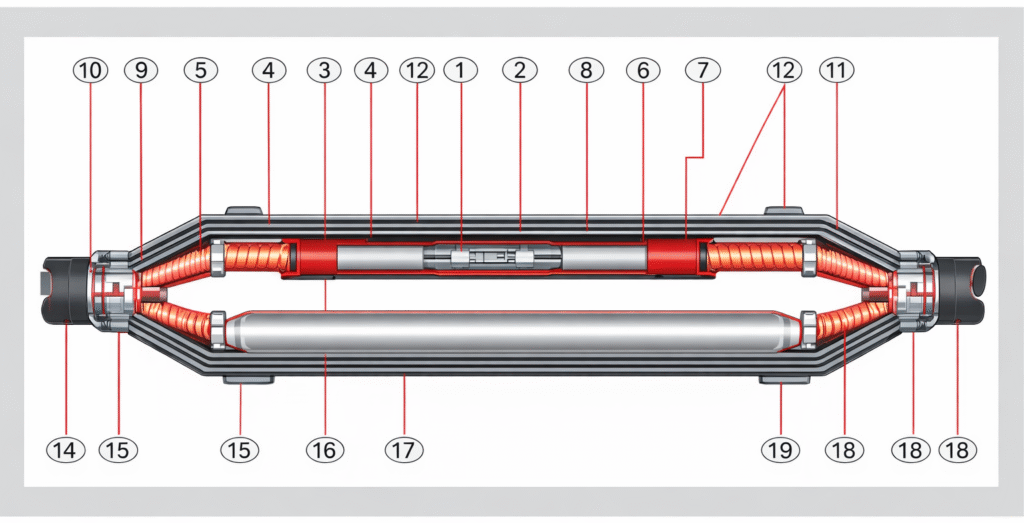

Cable Joints - GXS/1236kv - Series - Heat Shrinkable Straight Through Joints Suitable for 3 Core XLPE/PVC Insulated Cables for upto 36kv.
Cable Components
| Description |
|---|
| Outer Sheath |
| Inner Sheath |
| Semi Conducting Core Screen |
| XPLE Insulation |
| Armour |
| Metalic Screen (Copper Foil) |
Kit Components
| Description | Qty |
|---|---|
| Silicon Grease | 3 Nos. |
| Mastic Sealing Tape | 1 Roll. |
| HNylon String for Cutting XLPE Inulation | 1 No. |
| Aloxite Emery Tape | 3 Nos. |
| PVC Adhesive Tape | 1 No. |
| Mopping Cloth | 1 No. |
| Cleaning Tissue | 6 Nos. |
| Installation Instruction Manual | 1 No. |
Installation aids & Accessories (Part of std. Kits)
| Description | Qty |
|---|---|
| lnline Connection (Ferrule) | 3 Nos. |
| Stress Control Mastic | 6/9 Nos. |
| Heat Shrinkable Streess Control Sleeve (Black) | 3 Nos. |
| Heat Shrinkable Insulations (Red) tubings. 12 kV Systems. | 3 Nos. |
| 24 kV Systems. | 6 Nos. |
| 36 kV Systems. | 6 Nos. |
| Heat Shrinkable Dual Wall Screend Tubing (Red+Black) | 3 Nos. |
| Stress Control Mastic (Grey/Yellow) | 6 Strips. |
| Red Mastic | 6/9 Nos. |
| Copper Woven Flexible Mesh Tape | 3 Roll. |
| G. I. Mesh | 1 Roll. |
| Solder Tac (Alternetively Roll Spring) | 1 Set/ 3 Nos. |
| Solder Tac (Alternetively Roll Spring) | 1 Set/ 3 Nos. |
| Worm Drive Clips | 4 Nos. |
| Wraparound Joint Case (Metallic Protection Case)s | 1 No. |
| Heat Shrinkable Outer Jackting Sleeve (Central 1 No.+Side Sleeve 2Nos.) | 3 Nos. |
| Tinned Copper Braid (Main Earthing) | 1 No. |
Electrical Performance
| Tests | 12 kv System (6.6/6.6 KV,6.35/11KV) |
|---|
