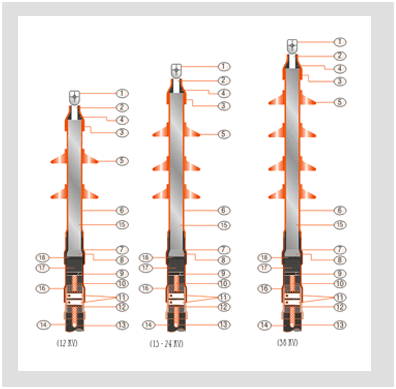

Cable Terminations - GXOS/E - 1236 - Series Heat Shrinkable Terminations Suitable for Single Core XLPE/EPR/PVC Insulated Cables For 36kV
Descriptions : GXOS / E – 1236 – Series Class I termination kits are Heat Shrinkable terminations kits designed for Single Core extrude dielectric, shielded, armored & unarmored cable accessories upto 36kV rated voltage.
Cable Components
| Descriptions |
|---|
| Conductor |
| Outer Sheath |
| XLPE Insulation |
| Metal Shield |
| Semi-Conducting Screen |
| Armour |
Kit Components
| Descriptions | Qty |
|---|---|
| Terminal Lug | 1 No |
| Heat Shrinkable Adhesive Lined Terminal Sleeve | 1 No |
| Lug Sealing Tape/Mastic Stripe | 1 Strips |
| Rain Shed | |
| 12 KV System | 2 Nos. |
| 24 KV System | 3 Nos. |
| 36 KV System | 4 Nos. |
| Anti Tracking Sleeve | 1 No. |
| Stress Control Sleeve | 1 No |
| Stress Control Mastic | 1 Strips. |
| Constant Force Spring Roll (Alternatively Solder Tack) | 1 No. |
| Copper Braid for Screen Earthing | 1 No. |
| Worm Drive Clip | 1 No. |
| Adhesive Lined Gland Sleeve (only for armoured cables) | 1 No. |
| Tinned Copper Braid duly fitted with Terminal Lug at One end + Solder block | 6 Nos. |
Installation aids & Accessories (Part of std. Kits)
| Descriptions | Qty |
|---|---|
| Silicone Grease | 1 No. |
| Mastic Sealing Tape | 1 Roll. |
| Cleaning Tissue | 2 Nos. |
| Nylon String for Cutting XLPE Insulation | 1 No. |
| Aloxite Emery Tape | 3 Pc. |
| Mopping Cloth | 1 Pc. |
| Installation Instruction Manual | 1 No. |
Electrical Performance (12 kV Rated Accessories)
| Tests | 12 kv System (6.6/6.6 KV, 6.35/11KV) | 15-24kV System (8.7/15KV,11/11KV,12.7/22KV) | 15-24kV System 36kV (19/33KV) |
|---|---|---|---|
| A.C. Dry Withstand 1 Minute | 35KV/1 minute | 50KV/1 Minute | 75KV/1 Minute |
| DC Withstand 1 Minute | 48 KV | 96 KV | 144 KV |
| Lightening Impulse withstand Voltage | 75 KV | 125 KV | 170 KV |
| Impulse Withstand (Crest kV) | 75 kV (Min) | 125 kV | 170 KV (Min) |
| Partial Discharge | 12.7 Kv < 5 Pc | 25 Kv < 5 Pc | 38 Kv < 5 Pc |
Accessories and optional items
- Standard Tail Length is 900, 800 & 600mm for outdoor and 700, 550, 450mm for indoor termination for 36Kv, 24Kv & 12Kv respectively.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
Note :-
- All kits are supplied with full kit contents for making a termination.
- Rain sheds for indoor termination 12 kV - No Rain shed, 15 -24 kV - 1 No. Rain shed, 36 kV - 2 Nos. Rain sheds.
Ordering Informations
| 12 KV System | 15 – 24 KV System | 36 KV System | ||||||
|---|---|---|---|---|---|---|---|---|
| Cable size (sq. mm) | Kit Code | Cable size (sq. mm) | Kit Code | Cable size (sq. mm) | Kit Code | |||
| 16-50 | GXES-11 | GXOS-11 | 16-50 | GXES-21 | GXOS-21 | 25-50 | GXES-31 | GXSS-31 |
| 70-120 | GXES-12 | GXOS-12 | 70-120 | GXES-22 | GXOS-22 | 70-185 | GXES-32 | GXSS-32 |
| 150-300 | GXES-13 | GXOS-13 | 185-300 | GXES-23 | GXOS-23 | 240-500 | GXES-33 | GXSS-33 |
| 400-630 | GXES-14 | GXOS-14 | 400-630 | GXES-24 | GXOS-24 | 630-800 | GXES-34 | GXSS-34 |
| 800-1000 | GXES-15 | GXOS-15 | 800-1000 | GXES-25 | GXOS-25 | 1000 | GXES-35 | GXSS-35 |
