GTJ/2436 kv – Series – Heat Shrinkable Transition Joint (Waterproof) Suitable for 3 Core XLPE/PILC Cables upto 24 kv series to 36Kv series – Hub

Cable Joints

Home / Cable Joints

Table of Content

Descriptions : – GTJ/2436 kv – Series are Designed for jointing XLPE cable to PILC cable for voltage 24kV & 36kV.

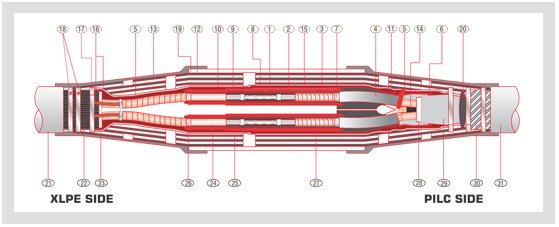

Cable Components

Kit Components

Descriptions	Qty
Inline Connеrctor (Barrier Type)	3 Nos.
Stress Relif Mastic	6 Nos.
H. S. Oil Barrier Sleeve	3 Nos.
Semi – Conducting Tubing	1 No.
High Permittivity Void Filler	1 No.
H. S. Conducting Breakout	1 No.
Stress Control Mastic at semi con Cut end XLPE side and semi-conducting	6 nos.
H. S. Stress Control Tubing	3 Nos.
H. S. Screened Tubing	16 Nos.
* 15-24kV	6 Nos.
* 36kV	9 Nos.
H. S. Screened Tubing (Duall Wall)(Alternatively seperate Insulation & Conducting Tubings).	3 Nos.
H. S. Compression Tubings	3 Nos.
Metallic Protection case/Warparound Joint Case (Alternatively a G I Mesh Tape for mechanical protection A New concept.)	1 No.
H. S. Adhesive Lined Side Sleeve	2 Nos.
Insulating wedge EPDM	1 No.
Tinned Copper Mesh Tape	3 Nos.
Tinned Copper Earth Braid	1 No.
Constant Face Spring Clamp/Solder+Flux.	1 Set
Jubilee Clamps.	2 Nos.
H. S. Outer Jacking Tubing (Centre)	1 No.
Plumbing Metal	1 Set.

Installation aids & Accessories (Part of std. Kits)

Descriptions	Qty
Nylon String for Cutting XLPE Insulation	1 No.
Aloxite Emery Tape	3 Pcs.
Mopping Cloth	1 Pc.
Silicon Grease	3 Pcs.
Cleaning Tissue	6 Pcs.
Mastic Sealing Tape	2 Nos.
Copper Binding Wire	1 Roll.
Instruction Manual	1 No.

Electrical Performance

Tests	15-24kV System (8.7/15kV,11/11kV,12.7/22kV)	36kV (19/33kV)
A.C. Withstand Voltage	50kV / 1 Minute	75kV / 1 Minute
D.C. Voltage Withstand Test	96kV / 30 Minutes	144kV / 30 Minutes
Lightening Impulse Withstand Voltage	125 KV	170 KV

Ordering Informations

Cable Size (Sq. mm.)	Kit Code 15-24 kV	Cable Size (Sq. mm.)	Kit Code 1536kV
A.C. Withstand Voltage	50kV / 1 Minute	75kV / 1 Minute
25- 50	GTJ-21	35-70	GTJ-31
70-95	GTJ-22	95-150	GTJ-32
GTJ-32	GTJ-23	185-300	GTJ-33
185-300	GTJ-24	400	GTJ-34
400-500	GTJ-25	—	—
