Cable Joints - GPS/2436 - Series - Heat Shrinkable Straight Through Joints (Waterproof) Suitable for upto 33kv 3 Core Screened PILC Cables (24 kv & 36 kv Series)

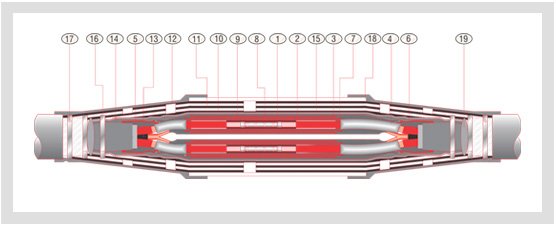

| No | Descriptions | No | Descriptions |
|---|---|---|---|
| 1 | Inline Connector Outer Jacketing | 11 | Metallic Protection Cage |
| 2 | Stress Control Mastic | 12 | Adhesive Lined Side Sleeve |
| 3 | Oil Barrier Sleeve | 13 | Insulating Wedge |
| 4 | Conducting Tube (Black) | 14 | Copper Mesh Tape |
| 5 | Void Foiler | 15 | Earth Lead |
| 6 | Conducting Breakout | 16 | Constant Force Spring Clamp |
| 7 | Grey Mastic | 17 | Worm Drive Clamp |
| 8 | Stress Control Tubing (Black) | 18 | Outer Jacketing Sleeve |
| 9 | Insulating Tube (Red) | 19 | Earthing Plumb |
| 10 | Dual Wall Tubing (Black+Red) |
Electrical Performance
| Tests | 15-24kV System (8.7/15KV,11/11KV,12.7/22KV) | 36kV (19/33KV) |
|---|---|---|
| A.C. Dry Withstand Voltage | 50kV / 1 Minute | 75kV / 1Minute |
| D.C. Voltage Withstand Test | 96kV / 30 Minutes | 144kv / 3 Minutes |
| Lightening Impulse Withstand Voltage | 75 KV | 170k |
Ordering Informations
| Cable Size (sq.mm.) | Kit Code 24kV | Cable Size (sq.mm.) | Kit Code 36kV |
|---|---|---|---|
| 25-50 | GPS-21 | 35-70 | GPS-31 |
| 70-120 | GPS-22 | 95-150 | GPS-32 |
| 150-240 | GPS-23 | 170k | GPS-33 |
| 300-500 | GPS-24 | 400– | GPS-34 |
Note:-
- All kits are supplied with full kit contents for making a straight through joint.
