Cable Joints - GPS/1112 - Series - Heat Shrinkable Straight Through Joints (Waterproof) Suitable for 11kv 3 Core PILC Cables (UMAX - 12kv)
Descriptions : GXSS/1236-Series kits are Heat Shrinkable Straight Through Jointing kits designed for single core extruded dielectric, shielded, armoured & unarmoured cables upto 36kV rated voltage (12kV, 15-24kV & 36kV usage).

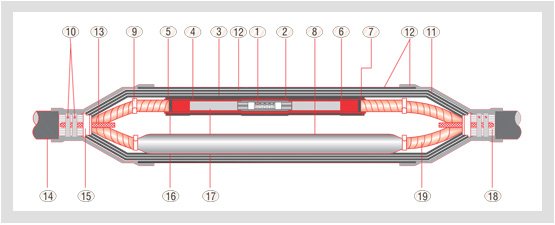

| No | Descriptions | No | Descriptions |
|---|---|---|---|
| 1 | Heat Shrinkable Adhesive Lined Outer Jacketing | 11 | Inline Connector (Crimping Type) Ferrule Cu/al. |
| 2 | G. I. Wire Mesh | 12 | Oil Barrier Sleeves |
| 3 | Armour/lead Sheath Earthing Matl. (Copper Braid + Plumbing Metal + Flux + Copper Binding Wire) | 13 | Insulating Wedge |
| 4 | Polymeric Core Seperator | 14 | Mastic Sealing Tape |
| 5 | Copper Woven Flexible Mesh Tape | 15 | Cleaning Solvent * |
| 6 | Glass Cushion Tape | 16 | Mopping Cloth * |
| 7 | Heat Shrinkable Oil Barrier Sleeve | 17 | PVC – Na – Tape * |
| 8 | Heat Shrinkable Insulating Tubing | 18 | Silicon Grease * |
| 9 | Heat Shrinkable Internal Protection Sleeve | 19 | Emery Sheet * |
| 10 | Insulation Built Up Mastic |
Installation aids & Accessories (Part of std. Kits)
| Descriptions | Qty. |
|---|---|
| Copper Binding Wire | 1 Roll |
| Aloxite Emery Tape | 1 No. |
| Silicon Grease | 2 Nos. |
| Cleaning Tissue | 2 Nos. |
| Mopping Cloth | 1 No. |
| Installation Instruction Manual | 1 No. |
Electrical Performance
| Tests | Requirements | Typical Value |
|---|---|---|
| A.C. Withstand Voltage | 35kV / 1 Minute | Pass |
| D.C. Voltage Withstand Test | 48kV / 30 Minutes | Pass |
| Lightening Impulse Withstand Voltage | 75 KV | 95 KV |
Ordering Informations
| Cable Size (sq.mm.) | Kit Code |
|---|---|
| 16-35 | GPS-11 |
| 50-95 | GPS-12 |
| 120-185 | GPS-13 |
| 240-400 | GPS-14 |
| 500-630 | GPS-15 |
Note:-
- All kits are supplied with full kit contents for making a straight through joint.
