Cable Terminations - GPO/E - 3336 - Series Heat Shrinkable Terminations Suitable for 3 Core Paper Insulated Lead Covered MIND Cable For 36 kV
Descriptions : GPO / E – 3336 – Series Class I termination kits are Heat Shrinkable terminations kits designed for 3 Core Screen Lead Sheath / Armour Paper Insulated Cable UPTO 36kV (33kV& 36kV).

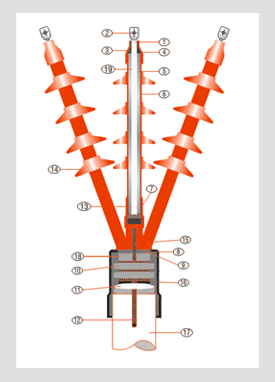

Cable Components
| Descriptions |
|---|
| Conductor |
| Paper Insulated Core |
| Outer Sheath |
| Lead Sheath |
Kit Components
| Descriptions | Qty |
|---|---|
| Terminal Lug | 3 Nos. |
| Lug Sealing Tape/Mastic | 3 Strips |
| Heat Shrinkable Adhesive Lined Terminal Sleeve | 3 Nos. |
| Heat Shrinkable Oil barrier Sleeve | 3 Nos. |
| Heat Shrinkable Non Tracking Weather Resistant Tubing | 3 Nos. |
| Stress Control Tubing | 3 Nos. |
| Glass Cushion Tape | 1 Roll. |
| Heat Shrinkable Belting Oil Barrier Sleeve | 1 No. |
| Worm Drive Clips (Optional) | 2 Nos. |
| Earthing Plumb (Connection of Lead Sheath to Armour) | 1 Set. |
| Tinned Copper Brand (Main Earthing) | 1 No. |
| Stress Control Mastic | 3 Strips |
| Rain Sheds | 9 Nos. |
| Insulation Shield Continuting (Small Copper Braid+Copper Wire) | 1 Set. |
| Heat Shrinkable Conducting Breakout | 1 No. |
Installation aids & Accessories (Part of std. Kits)
| Descriptions | Qty |
|---|---|
| Mastic Sealing Tape | 1 Roll. |
| Cleaning Solvent | 1 Bottle. |
| Emery Sheet | 1 No. |
| Mopping Cloth | 1 Pc. |
| Installation Instruction Manual | 1 No. |
Electrical Performance (12 kV Rated Accessories)
| Tests | Requirement Test Value | GXO/E-112-Series |
|---|---|---|
| A.C. Dry Withstand | 75 kV / 1 Minute | Pass |
| D.C. Voltage Withstand Test | 144 kV / 30 Minute | Pass |
| Lightening Impulse Withstand Voltage | 170 kV | > 170 kV |
Accessories and optional items
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
- Temperature sensitive paint changes colour when heat shrinking process is complete.
Note :-
- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.
Ordering Informations
| Cable size (sq. mm) | Outdoor Kit Code | Indoor Kit Code |
|---|---|---|
| 35-70 | GPO-31 | GPE-31 |
| 95-150 | GPO-32 | GPE-32 |
| 150-240 | GPO-33 | GPE-33 |
| 400 | GPO-34 | GPE-34 |
