Cable Terminations - GPO/E - 1524 - Series Heat Shrinkable Terminations Suitable for 3 Core Paper Insulated Lead Covered MIND Cable For 24 kV
Descriptions : GPO / E – 1524 – Series Class I termination kits are Heat Shrinkable Outdoor Termination kits designed for 3 Core Screened, Paper Insulated Lead Sheathed / Armour Cable UPTO 24kV .
Cable Components
| Descriptions |
|---|
| Conductor |
| Paper Insulated Core |
| Outer Sheath |
| Lead Sheath |

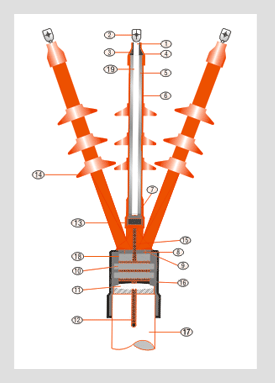

Kit Components
| Descriptions | Qty |
|---|---|
| Terminal Lug | 3 Nos. |
| Lug Sealing Mastic | 3 Strips |
| Heat Shrinkable Adhesive Lined Terminal Sleeve | 3 Nos. |
| Heat Shrinkable Oil barrier Sleeve | 3 Nos. |
| Heat Shrinkable Non Tracking Weather Resistant Tubing | 3 Nos. |
| Stress Control Tubing | 3 Nos. |
| Glass Cushion Tape | 1 Roll. |
| Heat Shrinkable Belting Oil Barrier Sleeve | 1 No. |
| Worm Drive Clips (Optional) | 2 Nos. |
| Earthing Plumb (Connection of Lead Sheath to Armour) | 1 Set. |
| Tinned Copper Brand (Main Earthing) | 1 No. |
| Stress Control Mastic | 3 Strips |
| Rain Sheds | 9 Nos. |
| Insulation Shield Continuting (Small Copper Braid+Copper Wire) | 1 Set. |
| Heat Shrinkable Conducting Breakout | 1 No. |
Installation aids & Accessories (Part of std. Kits)
| Descriptions | Qty |
|---|---|
| Mastic Sealing Tape | 1 Roll |
| Cleaning Solvent | 1 Bottle |
| Emery Sheet | 1 No |
| Mopping Cloth | 1 pc. |
| Installation Instruction Manual | 1 No. |
Electrical Performance (12 kV Rated Accessories)
| Tests | Requirement | Typical Value |
|---|---|---|
| A.C. Dry Withstand Voltage | 50 KV/1 minute | Pass |
| D.C. Voltage Withstand Test | 96 KV / 15 Minutes | Pass |
| Lightening Impulse withstand Voltage | 125 KV | >125 |
Accessories and optional items
- Standard Tail Length is 800mm for and 550mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
Note :-
- All kits are supplied with full kit contents for making a termination.
- All Indoor terminations shall have 1 No. Rain shed on each core.
Ordering Informations
| Cable size (sq. mm) | Outdoor Kit Code | Indoor Kit Code |
|---|---|---|
| 25-50 | GPO-21 | GPE-21 |
| 70-120 | GPO-22 | GPE-22 |
| 150-240 | GPO-23 | GPE-23 |
| 300-500 | GPO-24 | GPE-24 |
