Cable Terminations - GPO/E - 1112 - Series Heat Shrinkable Terminations Suitable for 3 Core Paper Insulated Lead Covered MIND Cable For 12 kV
Descriptions : GPO / E – 1112 – Series Class I termination kits are Heat Shrinkable terminations kits designed for 3 Core Paper Insulated Lead Covered Armoured / Screened PILC Cables.

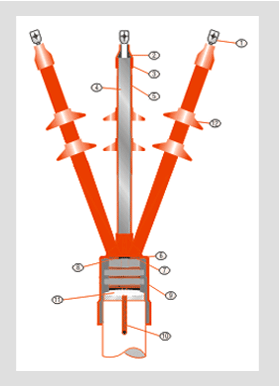

Kit Components
| No | Descriptions | Qty |
|---|---|---|
| 1. | Terminal Lug | 3 Nos. |
| 2. | Lug Sealing Mastic | 3 Strips |
| 3. | Terminal Sleeve | 3 Nos. |
| 4. | Oil Barrier Sleeve | 3 Nos. |
| 5. | Non Tracking Weather Resistant Sleeve | 3 Nos. |
| 6. | Stress Control Sleeve | 3 Nos. |
| 7. | Belting Oil Barrier Sleeve | 1 No. |
| 8. | Glass Cushion Tape | 1 No. |
| 9. | Cable Breakout | 1 No. |
| 10. | Earthing Connection Lead | 1 No. |
| 11. | Earthing Plumb | 1 Set. |
| 12. | Rain Sheds | 6 Nos. |
Installation aids & Accessories (Part of std. Kits)
| Descriptions | Qty |
|---|---|
| Mastic Sealing Tape | 1 Roll |
| Cleaning Solvent | 1 Bottle |
| Emery Sheet | 1 No |
| Mopping Cloth | 1 pc. |
| Installation Instruction Manual | 1 No. |
Electrical Performance (12 kV Rated Accessories)
| Tests | Requirement | Typical Value |
|---|---|---|
| A.C. Dry Withstand Voltage | 35KV/1 minute | Pass |
| D.C. Voltage Withstand Test | 48 kV / 30 Minutes | Pass |
| Lightening Impulse withstand Voltage | 75 KV | >75 |
Accessories and optional items
- Standard Tail Length is 600mm for outdoor and 450mm for indoor terminations. Special tail lengths available on request.
- Solderless and special purpose earthing kits also available on request.
- Polymeric Insulators and T Brackets for installation of terminations on single pole are available on request.
Note :-
- All kits are supplied with full kit contents for making a termination.
- All Indoor Kits are supplied without rain sheds.
Ordering Informations
| Cable size (sq. mm) | Outdoor Kit Code | Indoor Kit Code |
|---|---|---|
| 16-35 | GPO-11 | GPE-11 |
| 50-95 | GPO-12 | GPE-12 |
| 120-185 | GPO-13 | GPE-13 |
| 240-400 | GPO-14 | GPE-14 |
| 500 | GPO-15 | GPE-15 |
