Cable Terminations - GLT - 1100 - Series Heat Shrinkable Terminations Suitable for PVC/XLPE Cables upto 3.3kV
Descriptions : GLT – 1100 – Series Heat Shrinkable terminations kits designed for 1, 2, 3, 3?, 4, Core extruded Solid dielectric (XLPE / PVC) & paper insulated cable (Armoured / Un-Armoured) of 1.1kV & 3.3 kV rating.

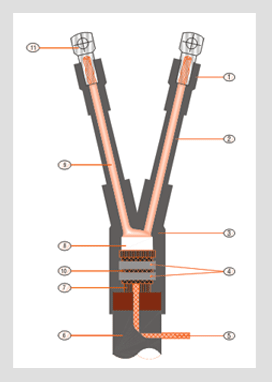

Cable Components
| Descriptions |
|---|
| Outer Sheath |
| Armour |
| Inner Sheath |
| Cable Insulation |
Kit Components
| Descriptions | Qty |
|---|---|
| H. S. Terminal Sleeve | 4 Nos. |
| Insulations Sleeve* | 4 Nos. |
| H. S. Cable Breakout | 1 No. |
| Jubilee Clamp | 1 No. |
| Tinned Copper Braid | 1 Roll. |
| Black Mastic Sealant Tape | 4 Nos. |
| Terminal Lug | 1 No. |
Installation aids & Accessories (Part of std. Kits)
| Descriptions | Qty |
|---|---|
| Cleaning Tissue | 2 Nos. |
| Mopping Cloth | 1 No |
| Installation Instruction Manual | 1 No. |
Electrical Performance
| Tests | Parmeter For Evaluation | Test Voltage Hightest Voltage Umax (kV) | Result | |
|---|---|---|---|---|
| Insulation Resistance | 1 mn. 500 V Dc | – | – | >10³ i© |
| A.C. High Voltage Test (Dry) | 15 min. | 4 | 8 | No Breakdown & no Flashover |
| Impulse Withstand Test at Ambient Temperature | 10 Positive & 10 Negative | 8 | 12 | No Breakdown & no Flashover |
| Heating Cycle Test | 63 cycles, 8 Hour Cycle, 5 hrs. heating & 3 hrs. cooling | – | – | No Breakdown & no Flashover |
| Insulation Resistance after Impact Test (Immersed) | 1 min. 500 V Dc | – | – | >10³ i© |
| Impulse Withstand Test at Elevated Temperature | 10 Positive & 10 Negative Conductor temperature 95 to 100°C | 8 | 12 | No Breakdown & no Flashover |
| Heating Cycle Test | 63 cycles, 8 Hour Cycle, 5 hrs. heating & 3 hrs. cooling | – | – | No Breakdown & no Flashover |
Ordering Informations
| Cable size (sq. mm) | Outdoor Kit Code | Indoor Kit Code |
|---|---|---|
| 4×16-35 | GLT-01 | GLT-11 |
| 4×50-95 | GLT-02 | GLT-12 |
| 4×120-185 | GLT-03 | GLT-13 |
| 4×225-300 | GLT-04 | GLT-14 |
| 4×400-500 | GLT-05 | GLT-15 |
