GLC : Thin Wall Tube
Home / GLC : Thin Wall Tube
❮
❯
×
![]()

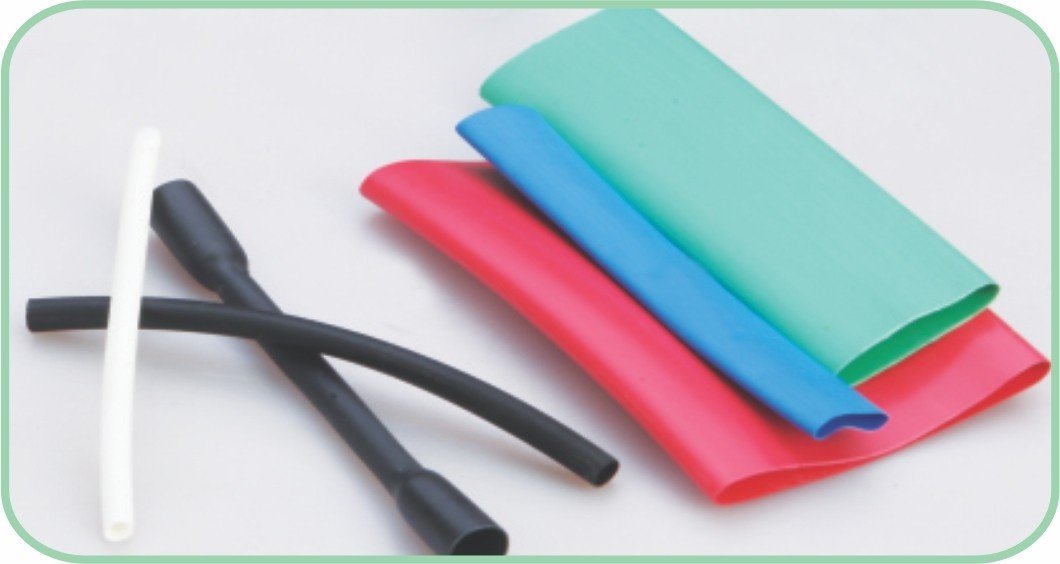

GLC is Thin Wall Tube suitable for below applications:
GLC Series :
- Light duty wire harnessing for electrical & electronic applications.
- Provides electrical insulation and protection for in-line components.
- Used as strain relief for electrical wire connection.
- Bus-bar insulation for switchgear.
General Product Properties
- Halogen free
- For Electrical Insulation up to 3.3 kV
- Resistance to chemical, copper corrosion and fungus
- Standard Color: Black
- Shrink ratio 2:1
- UV stabilized
- Meets RoHS Compliance
Specifications
MIL-1-23053/5 Class 2 & 3,Ul224 (File no.E328193) 125C VW1, CSA C22.2

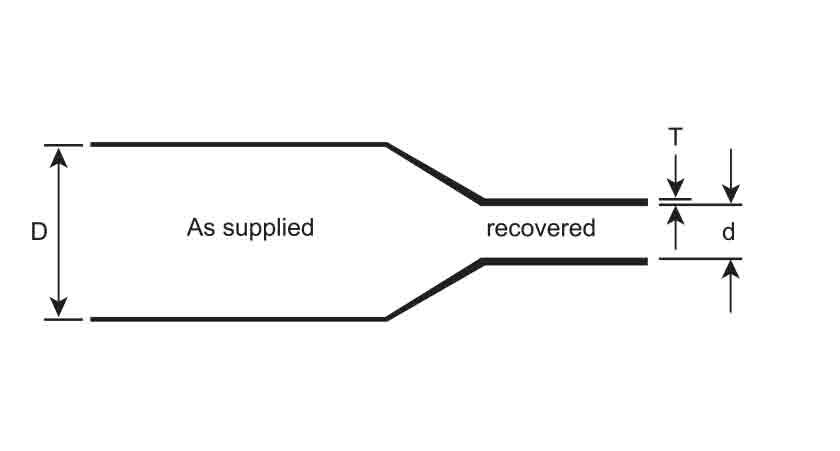

Diagram
Selection Chart
Selection Chart
| Part Number / Size | Supplied Id (min.) | Recovered Id (max.) | Recovered Wall Thick. (±10%) | Spools Mtr./Spool |
Cut Lengths 1.2 Mtr./Box |
|---|---|---|---|---|---|
| GLC 6.0/3.0 | 6.0 mm | 3.0 mm | 0.56 mm | 100 | 200 |
| GLC 7.0/3.5 | 7.0 mm | 3.5 mm | 0.56 mm | 100 | 200 |
| GLC 8.0/4.0 | 8.0 mm | 4.0 mm | 0.56 mm | 100 | 175 |
| GLC 10.0/5.0 | 10.0 mm | 5.0 mm | 0.56 mm | 100 | 150 |
| GLC 12.7/6.35 | 12.7 mm | 6.35 mm | 0.56 mm | 100 | 120 |
| GLC 14.0/7.0 | 14.0 mm | 7.0 mm | 0.69 mm | 100 | 100 |
| GLC 16.0/8.0 | 16.0 mm | 8.0 mm | 0.69 mm | 100 | 100 |
| GLC 18.0/9.0 | 18.0 mm | 9.0 mm | 0.69 mm | 100 | 80 |
| GLC 20.0/10.0 | 20.0 mm | 10.0 mm | 0.78 mm | 100 | 65 |
| GLC 25.0/12.5 | 25.0 mm | 12.5 mm | 0.78 mm | 50 | 40 |
| GLC 30.0/15.0 | 30.0 mm | 15.0 mm | 0.87 mm | 50 | 30 |
| GLC 40.0/20.0 | 40.0 mm | 20.0 mm | 0.97 mm | 50 | 20 |
| GLC 50.0/25.0 | 50.0 mm | 25.0 mm | 0.97 mm | 25 | 15 |
| GLC 60.0/30.0 | 60.0 mm | 30.0 mm | 0.96 mm | 25 | 10 |
| GLC 70.0/35.0 | 70.0 mm | 35.0 mm | 1.10 mm | 25 | 10 |
| GLC 80.0/40.0 | 80.0 mm | 40.0 mm | 1.27 mm | 25 | 10 |
| GLC 100/50.0 | 100.0 mm | 50.0 mm | 1.17 mm | 25 | 5 |
Technical Specification
Technical Specification
| PROPERTIES | VALUE | STANDARD |
|---|---|---|
| Physical | ||
| Tensile Strength | 10 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 200 % (min) | ASTM D638 |
| Water Absorption | 0.15 % (max.) | ASTM D570 |
| Longitudinal Change | -10% (max.) | ASTM D638 |
| Thermal | ||
| Operating Temperature | -55 to +125°C | IEC 216 |
| Low Temperature Flexibility (-55°C for 4 hrs.) | No Cracking | ASTM D2671 |
| Electrical | ||
| Dielectric Strength | >15 kV/mm. | ASTM D2671 |
| Di-electric Constant | 5.0 (max.) | ASTM D150 |
| Volume Resistivity | 1 x 10¹⁴ Ohm.cm (min) | ASTM D257 |
