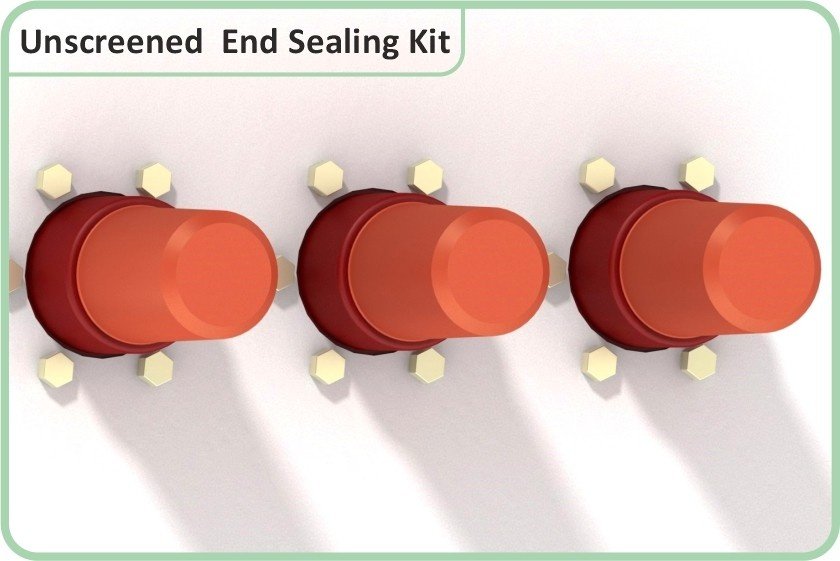

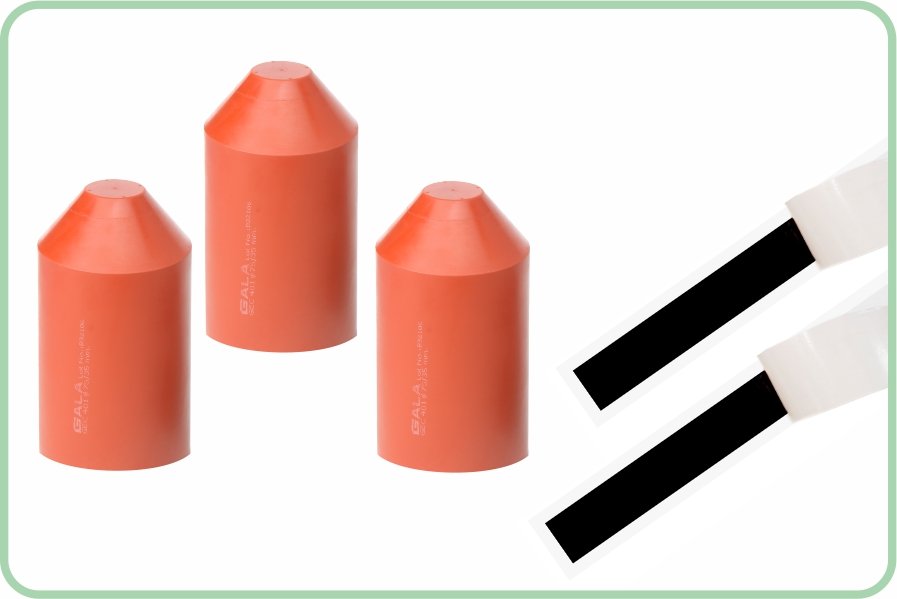

End Sealing Kit for Extensible RMU / GIS Bushing
End Sealing Kit for RMU extensible / GIS Bushing is used to seal and insulate the ends of Bushings & also protect it from ingress of water / moisture. The caps used in End Sealing Kits are manufactured from high quality Cross-linked Non-tracking Polyolefin material.
Compatible with all types of Bushings.
The caps need to be removed from the Bushings for new connections.

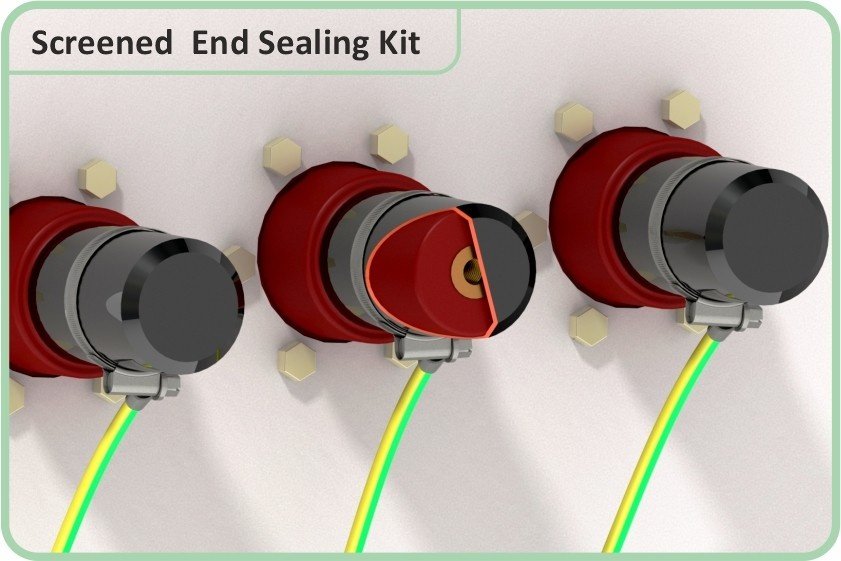

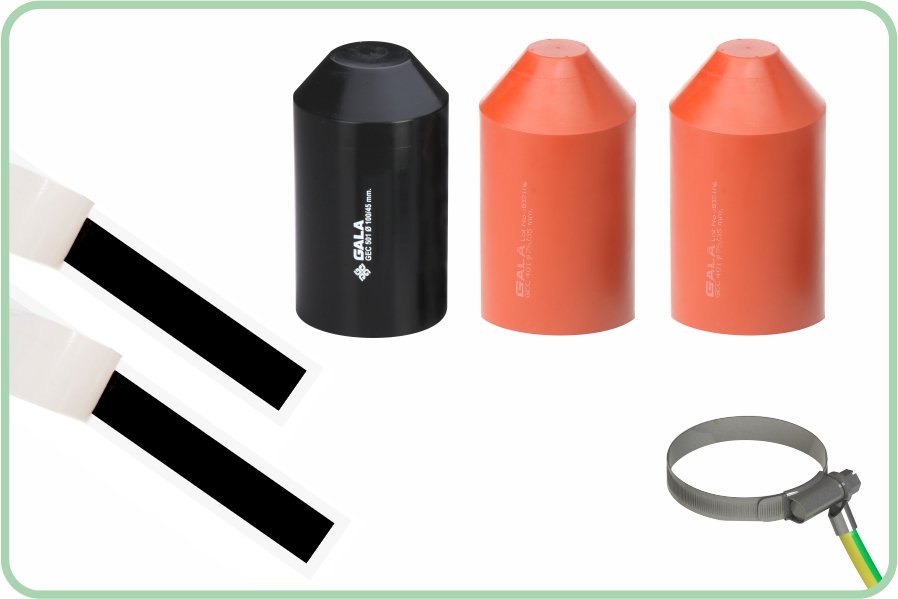

Screened Sealing Kit with Ground
Touch Proof Protective Cap is designed to electrically insulated and mechanically seal busing interfaces. The cap can be sued for permanent and temporary insulation on bushing, junctions.
Screened End cap is an accessory device designed to electrically insulate and mechanically seal bushings. When installed on the bushings and the drain wire is attached to ground, the Screened End cap provides a fully shielded, submersible insulating cover for energized bushings. The cap can be used for permanent or temporary installation on bushings, junctions, or feedthru devices.

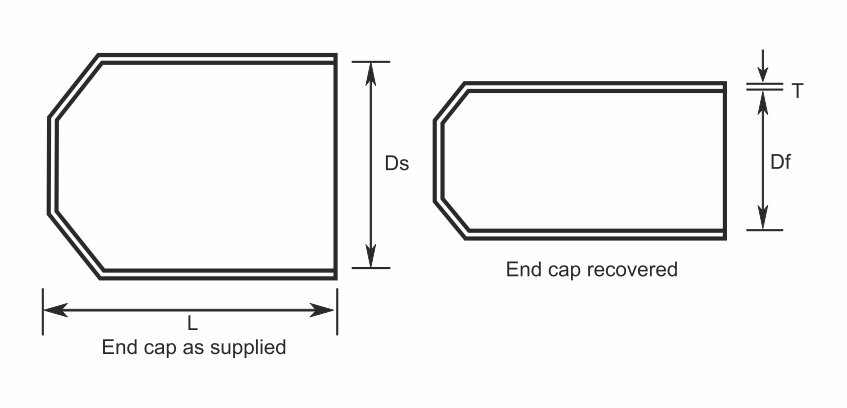

Diagram
Selection Chart – Unscreened End Sealing Kit
| Gala Code | Ds (Min.) | Df (Max.) | Ls (Min.) | Tf (± 10%) |
|---|---|---|---|---|
| GEK – 401 | 75 | 35 | 125 | 4.0 |
| GEK – 501 | 100 | 45 | 125 | 4.0 |
Selection Chart – Screened End Sealing Kit
| Gala Code | Ds (Min.) | Df (Max.) | Ls (Min.) | Tf (± 10%) |
|---|---|---|---|---|
| GSEK – 401 | 75 | 35 | 125 | 4.0 |
| GSEK – 501 | 96 | 45 | 125 | 4.0 |
D: Internal Diameter | s: as supplied | f: after free recovery | L: Length | T: Thickness of Insulation Layer after free recovery
Technical Specification
| Test Description | Recorded Value | Test Method |
|---|---|---|
| Dielectric Strength | 12 KV/mm. (min.) | ASTM D149 |
| Tensile Strength | 12 N/mm² (min.) | ASTM D638 |
| Elongation | 350% (min.) | ASTM D638 |
| Density | 1.23 gm/cm³ | ASTM D792 |
| Hardness | 65 ± 5 Shore A | ASTM D2240 |
| Continuous Operating Temp. | -20°C to 115°C | IEC 216 |
| Flammability | Pass | UL 94-V0 |
Certificates
FAQs
1. What is a Screened Separable Connector?
A Screened Separable Connector is a medium-voltage cable accessory used to connect power cables to transformers, switchgear, or other equipment. It is fully screened and separable, allowing safe installation, disconnection, and maintenance.
2. What voltage levels are Screened Separable Connectors used for?
They are commonly used for 3.6 kV to 36 kV medium-voltage applications, depending on the connector design and standards.
3. Where are Screened Separable Connectors typically used?
