Heat Shrinkable Pole Cap
Dock Pile Cap is Heat Shrink Cap, used to cover the top of the Wooden Dock Pile & to protect it from ingress of water / moisture, thereby increasing Dock Pile life. The caps are manufactured from high quality Cross-linked Polyolefin material.
Features
- Hot melt adhesive lining provides 100% environmental sealing against weathering, moisture, contamination and adverse environmental conditions according to IP 68.
- Resistance to UV rays & Ozone.
- Versatile and cost effective, as 5 sizes & covers Dock Pile dia. from 140 mm to 460 mm.
- Service life more than 30 years.
- Easy installation on concrete, wood, steel or composite poles in minutes.
Benefits
- Once the heat applied, adhesive filled inside the top surface (optional) melts & penetrates into the Dock Pile cracks and cavities, thereby reinforces the top of the Dock Pile.
- Provides excellent Impact resistance, i.e. when a Dock Pile end is covered and hits on a sharp edge, it would not crack.
- Prevents birds from perching (woodpecker damage) or nesting on top of round tubular & solid Dock Piles.
- Protects the top of the Dock Pile from damage caused by freeze and thaw conditions.
- No maintenance after installation
- Can also be used on marine pylons to protect piling from internal.

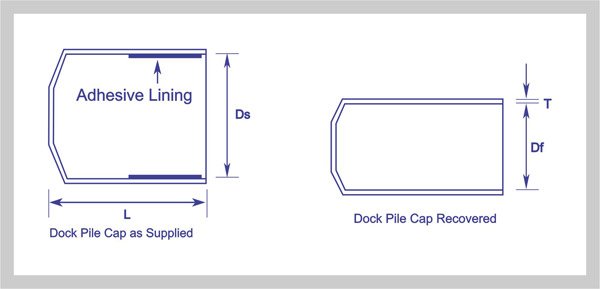

Diagram
Selection Chart
| Code No. | Ds (Min.) | Df (Max.) | Ls (Min.) | Tf (± 10%) | Pole Range |
|---|---|---|---|---|---|
| GPC 801S | 190 | 125 | 220 | 4.0 | 140 – 165 |
| GPC 801 | 230 | 125 | 220 | 4.0 | 140 – 200 |
| GPC 901 | 310 | 120 | 220 | 7.0 | 140 – 280 |
| GPC 1001 | 400 | 204 | 220 | 6.0 | 230 – 460 |
D: Internal Diameter | s: as supplied | f: after free recovery
Technical Specification
| Properties | Value | Standard |
|---|---|---|
| Tensile Strength | 12 N/mm² (MPa) (min.) | ASTM D638 |
| Ultimate Elongation | 350% (min.) | ASTM D638 |
| Water Absorption | 0.2% (max.) | ASTM D570 |
| Accelerated Ageing (120°C for 500 Hrs.) | ASTM D2671 | |
| Tensile Strength | 11 N/mm² (MPa) (min.) | ASTM D638 |
| Ultimate Elongation | 300% (min.) | ASTM D638 |
| Heat Shock (250°C for 30 Min.) | No Cracking or Flowing | ESI 09-11 |
| Continuous Temperature Limit | -40°C to +110°C | IEC 216 |
| Dielectric Strength | 12 KV/mm. (min.) | ASTM D149 |
| Volume Resistivity | 1 x 10¹⁴ Ohm.cm (min.) | ASTM D257 |
| Dielectric Constant | 5 (max.) | ASTM D150 |
Installation Instructions
Dock Pile supplied by us are in an expanded form. When heated above 1250c they attempt to shrink back to their original dimensions, conforming to the objects they cover. Use a propane (preferred) or butane gas torch. Adjust the torch to obtain a soft blue flame with a yellow tip. Pencil-like blue flames should be avoided. Keep the flame moving continuously to avoid scorching the material.
Dock Pile Preparation :
If necessary, cut the Dock Pile end so that it is straight and even. Clean and de-grease the Dock Pile surface that will come into contact with sealant. (Fig. 1)
Installation of Dock Pile:
Place it over the top of the Dock Pile.(Fig. 2)
Shrink it into place, starting at the closed end and working towards the Dock Pile. Adhesive will be visible at ends. (Fig. 3)
Properly installed will be smooth and conform to Dock Pile. Allow the Cap to cool before applying any mechanical strain.(Fig. 4)
The Best & Cost-effective Solution for long term maintenance of Dock Pile :
- Wood shrinks when losing moisture from the cell walls & swells when gaining moisture in the cell walls. This shrinking & swelling can result in warping, splitting, cracking mainly from top surface; which can cause gaps & loosening of Tool Handles. Dock Piles which eliminates such problems & avoids extra cost of Clamps, used to tighten the gaps; thereby avoiding long term maintenance of Dock Piles.
- Use of Dock Pile typically adds some nominal percentage to the total cost of New Dock Pile replacement. Precaution is always better than cure.
Certificates
FAQs
1. What is a Heat Shrink Shroud?
A Heat Shrink Shroud is a protective sleeve made from cross-linked polymer material that shrinks when heat is applied. It provides insulation, sealing, and mechanical protection for cables, joints, and terminations.
2. How does a Heat Shrink Shroud work?
When heat is applied using a heat gun or torch, the shroud shrinks uniformly and tightly wraps around the cable or joint, creating a secure and sealed covering.
When heat is applied using a heat gun or torch, the shroud shrinks uniformly and tightly wraps around the cable or joint, creating a secure and sealed covering.
3. What material is Heat Shrink Shroud made of?
It is typically made from cross-linked polyolefin material, often containing carbon black for UV resistance and weather protection.
