Cable End Caps - De gassing End Caps
❮
❯
×
![]()
Insulcap-De-gassing (RV) is Heat Shrinkable End Caps, supplied with Relief Valve (RV) & are used for sealing High Voltage & Extra High Voltage Cables (33 kV & above) to release the constantly evolving gas generated inside the Cable during transportation & storage in hot climate conditions.
- Provides additional security to Cables by relieving the pressure generated by Residual gases.
- Valved End caps (v) available for pressurized application for Telecom cables.
- Special Relief valved End Caps (RV) available for degassing application in High Voltage Power cables.
- Live End Cap Kit available for sealing Live Cables.
- Conductive End Caps are available with Conductive Mastic.

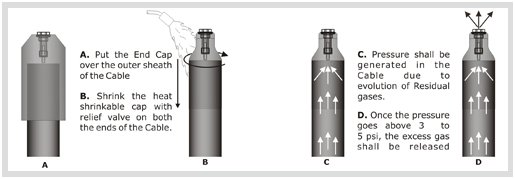

Working of pressure relief valve
SELECTION CHART
| CODE NO. | Ds (Min.) | Df (Max.) | LS (Min.) | Tf(± 10%) | CABLE RANGE |
|---|---|---|---|---|---|
| GEC 102 RV | 30 | 11 | 75 | 2.5 | 12-26 |
| GEC 201 RV | 40 | 15 | 90 | 3.3 | 16-35 |
| GEC 201 L RV | 40 | 15 | 120 | 3.3 | 16-35 |
| GEC 301 RV | 55 | 25 | 125 | 3.8 | 25-47 |
| GEC 301 L RV | 55 | 25 | 170 | 3.8 | 25-47 |
| GEC 401 RV | 75 | 35 | 140 | 4.0 | 35-68 |
| GEC 401 L RV | 75 | 35 | 180 | 4.0 | 35-68 |
| GEC 501 RV | 100 | 45 | 160 | 4.0 | 45-90 |
| GEC 501 L RV | 100 | 45 | 200 | 4.0 | 45-90 |
| GEC 601 RV | 130 | 60 | 160 | 4.6 | 64-120 |
| GEC 601 L RV | 130 | 65 | 300 | 4.6 | 67-120 |
| GEC 701 RV | 154 | 60 | 165 | 4.6 | 72-145 |
| GEC 701 L RV | 154 | 65 | 300 | 4.6 | 70-145 |
| GEC 801 RV | 230 | 125 | 220 | 4.0 | 140-200 |
D : Internal Diameter ; s : as supplied ; f : after free recovery
TECHNICAL SPECIFICATION
| PROPERTIES | VALUE | STANDARD |
|---|---|---|
| Physical | ||
| Tensile Strength | 12 N/mm² (MPA)(min.) | ASTM D638 |
| Ultimate Elongation | 350% (Min.) | ASTM D638 |
| Water Absorption | 0.2 % (max.) | ASTM D570 |
| Thermal | ||
| Accelerated Ageing | (120°C for 500 Hrs) | ASTM D2671 |
| Tensile Strength | 11 N/mm² (Mpa) (min.) | ASTM D 638 |
| Ultimate Elongation | 300% (Min.) | ASTM D638 |
| Heat Shock (250°C for 30 Min.) | No Cracking or flowing | ESI 09-11 |
| Continuous Temperature limit | -40°C to + 100°C | IEC 216 |
| Electrical | ||
| Dielectric Strength | 12 KV/mm. (Min.) | ASTM D149 |
| Volume Resistivity | 1 x 10¹⁴ Ohm.cm(min.) | ASTM D257 |
| Dielectric Constant | 5 (Max.) | ASTM D150 |
