Conductive End Cap
Home / Conductive End Cap
❮
❯
×
![]()

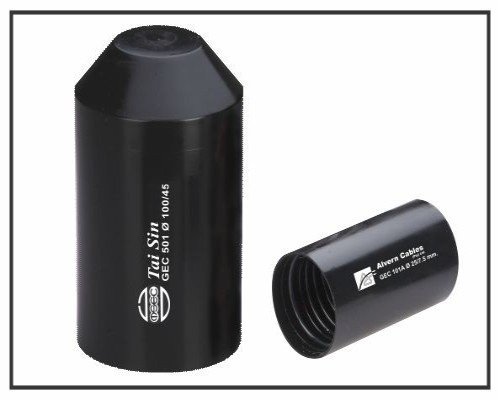

Gala Conductive End Caps Specially used to protect unused Cable Ends where there are Live Cables in close proximity to this Cable. The Live Cables nearby create an electric field and induce a potential in the unused Cable. The Conductive End Caps and the conductive mastic present inside the Cap neutralize this potential induced in the unused Cables. Additionally, the Conductive End Caps are used to seal the ends of Cables & protect from the ingress of water/moisture like the normal End Caps.
Features & Benefits
- Manufactured from high-quality cross-linked, semi-conductive polyolefin material.
- Hot Melt adhesive lining provides a permanent seal on irregular cable sheaths.
- Excellent resistance to weathering, moisture, contamination, and adverse environmental conditions.

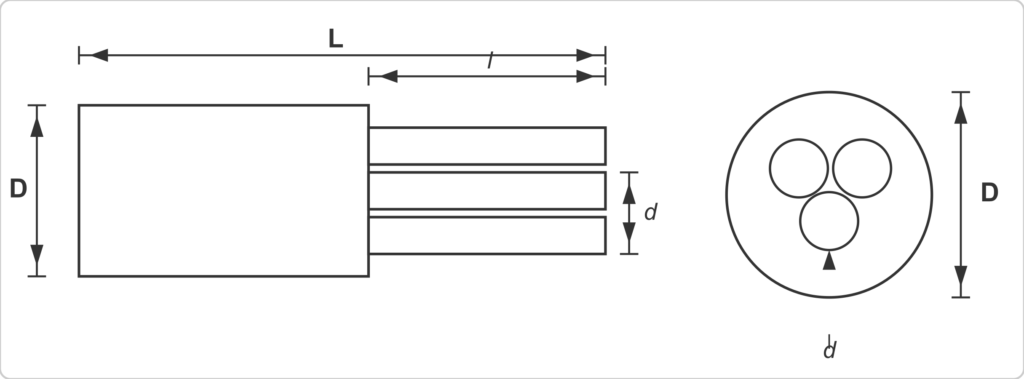

Diagram
Selection Chart
SELECTION CHART
| Code No. | Ds (Min.) | Df (Max.) | Ls (Min.) | Tf (±10%) | Cable Range |
|---|---|---|---|---|---|
| GCEC 001 S | 6 | 2 | 25 | 2.0 | 2.5–4 |
| GCEC 001 SA | 8 | 2 | 25 | 2.0 | 2.5–6 |
| GCEC 001 | 12 | 4 | 40 | 2.3 | 5–8 |
| GCEC 001 L | 12 | 4 | 58 | 2.3 | 5–8 |
| GCEC 001 A | 14 | 4 | 40 | 2.3 | 5–11 |
| GCEC 001 AL | 14 | 4 | 58 | 2.3 | 5–11 |
| GCEC 101 | 20 | 7.5 | 55 | 2.3 | 10–16 |
| GCEC 101 L | 20 | 8 | 75 | 2.5 | 10–16 |
| GCEC 101 A | 25 | 8.5 | 55 | 2.3 | 10–20 |
| GCEC 101 AL | 25 | 8.7 | 75 | 2.5 | 10–20 |
| GCEC 102 | 30 | 11 | 75 | 2.5 | 13–26 |
| GCEC 102 L | 30 | 11 | 110 | 2.5 | 13–26 |
| GCEC 102 A | 35 | 11 | 75 | 2.5 | 13–30 |
| GCEC 102 AL | 35 | 11 | 115 | 2.5 | 13–30 |
| GCEC 201 | 40 | 15 | 90 | 3.3 | 17–35 |
| GCEC 201 L | 40 | 15 | 120 | 3.3 | 17–35 |
| GCEC 201 A | 45 | 15 | 90 | 3.3 | 17–40 |
| GCEC 201 AL | 45 | 15 | 120 | 3.3 | 17–40 |
| GCEC 301 | 55 | 25 | 125 | 3.5 | 30–47 |
| GCEC 301 L | 55 | 25 | 170 | 3.5 | 30–47 |
| GCEC 301 A | 63 | 25 | 125 | 3.5 | 30–55 |
| GCEC 301 AL | 63 | 25 | 170 | 3.5 | 30–55 |
Note: D = Internal Diameter; s = as supplied; f = after free recovery
Technical Specification
TECHNICAL SPECIFICATION
| PROPERTIES | VALUE | STANDARD |
|---|---|---|
| Physical | ||
| Tensile Strength | 12 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 300 % (min) | ASTM D638 |
| Density | 1.10 ± 0.2 gm/cm³ | ASTM D792 |
| Hardness | 45 ±10 Shore D | ASTM D2240 |
| Water absorption | 0.5 % (max.) | ASTM D570 |
| Thermal | ||
| Accelerated ageing | (120°C for 500 hrs) | ASTM D2671 |
| Tensile Strength | 11 N/mm² (Mpa) (min.) | ASTM D638 |
| Ultimate Elongation | 250 % (min.) | ASTM D638 |
| Heat Shock (250°C for 30 min) | No Cracking or flowing | ESI 09-11 |
| Shrink Temperature | 125°C | IEC 216 |
| Continuous Temperature Limit | -40 to +100°C | IEC 216 |
| Electrical | ||
| Volume Resistivity | 1 x 10⁷ Ohm.cm (max) | ASTM D257 |
