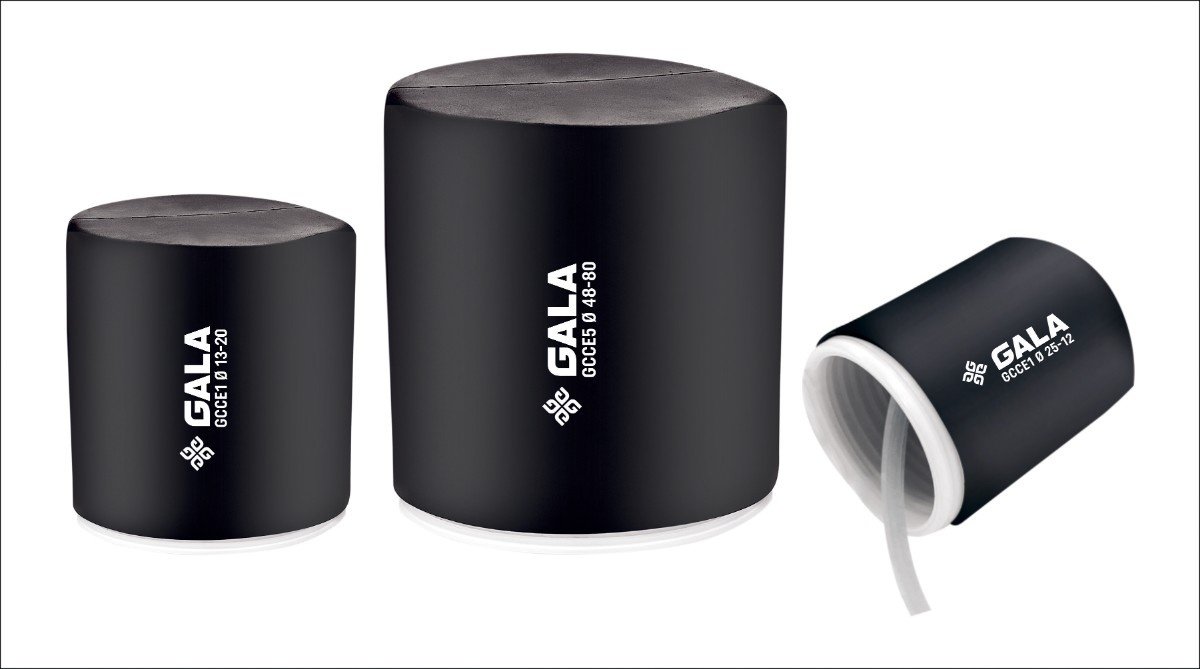

Cold Shrink End Cap
Cold Shrink End Cap is used to seal the ends of all types of Cables & protect from ingress of water / moisture. The caps are manufactured from high quality EPDM Rubber compatible with most commonly used Cable Jackets i.e. XLPE, PVC, PILC or Rubber Sheathed Cable.

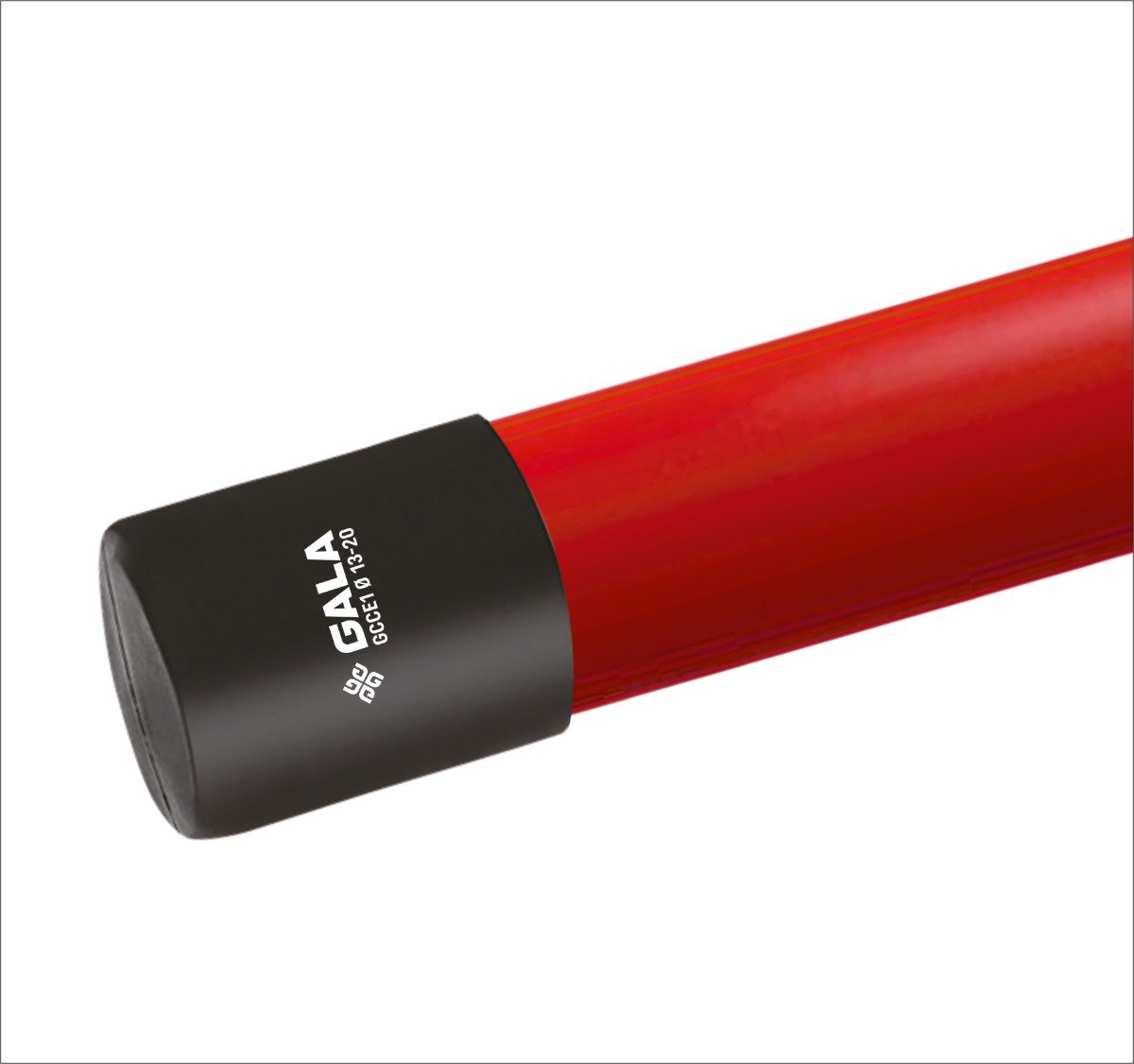

Gala Cold Shrink End Cap are close ended, tubular rubber end cap that are factory expanded and loaded onto a removable core. When positioned over the end of a cable or other cylindrical object, the core is removed to provide a reliable environmental seal. Different end caps are available to accommodate a wide range of sizes.
Features and Benefits
- Simple and fast installation, no tools required.
- Accommodates size ranges from 10mm - 80mm.
- Seals tight, retains resiliency for years.
- Water resistance.
- No mastic or tape required.
- Resists acids and alkalis.
- Resists ozone.
- No training required for installation.
- Resists fungus.
- Operating temperature range -40 °C to 105°C
Diagram
Selection Chart
| Code No. | Ds (min.) | Df (max.) | Lf (min.) | Tf (min.) | Application Range |
|---|---|---|---|---|---|
| GCCE – 01 | 25 | 12 | 60 | 3.3 | 13 – 20 |
| GCCE – 02 | 35 | 16 | 75 | 3.4 | 17 – 30 |
| GCCE – 03 | 45 | 22 | 80 | 3.4 | 23 – 38 |
| GCCE – 04 | 55 | 22 | 80 | 3.4 | 23 – 48 |
| GCCE – 05 | 90 | 45 | 100 | 3.4 | 46 – 80 |
Technical Specification
| Properties | Test Methods | Typical Value |
|---|---|---|
| Colour | Visual | Black |
| 300% Modulus | ASTM D-412 | 3.3 MPa |
| Ultimate Tensile | ASTM D-412 | 9.6 MPa |
| Ultimate Elongation | ASTM D-412 | 750% |
| Die C Tear | ASTM D-624C | 26.3 KN/m |
| Fungus Resistance | ASTM G-21 | 28 Days exposure no growth |
| Moisture Absorption 7 days @ 90°C H₂O | Internal Method | Wt. Gain 1.8% |
