Cold Shrink Breakout
Home / Cold Shrink Breakout
❮
❯
×
![]()

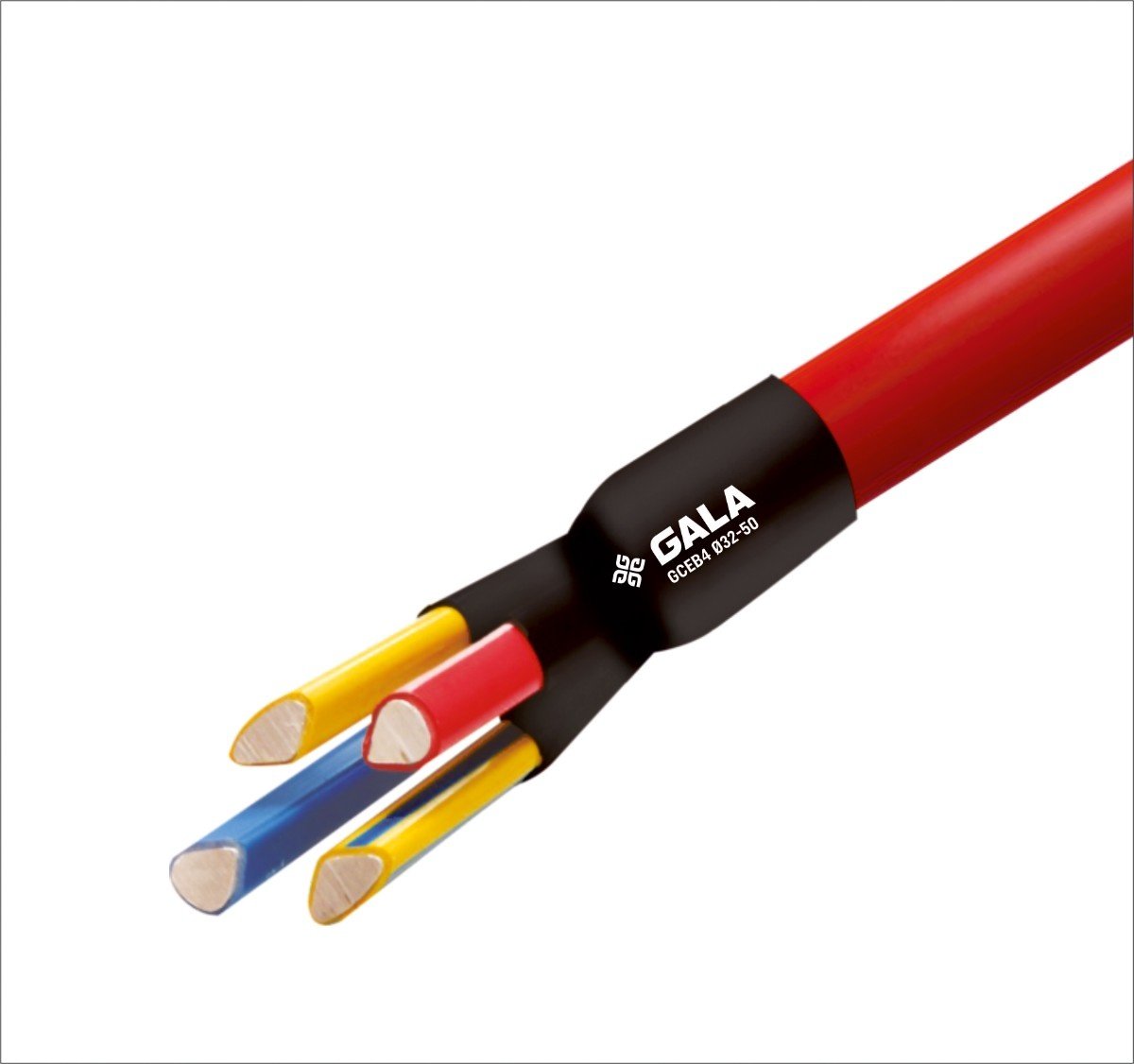

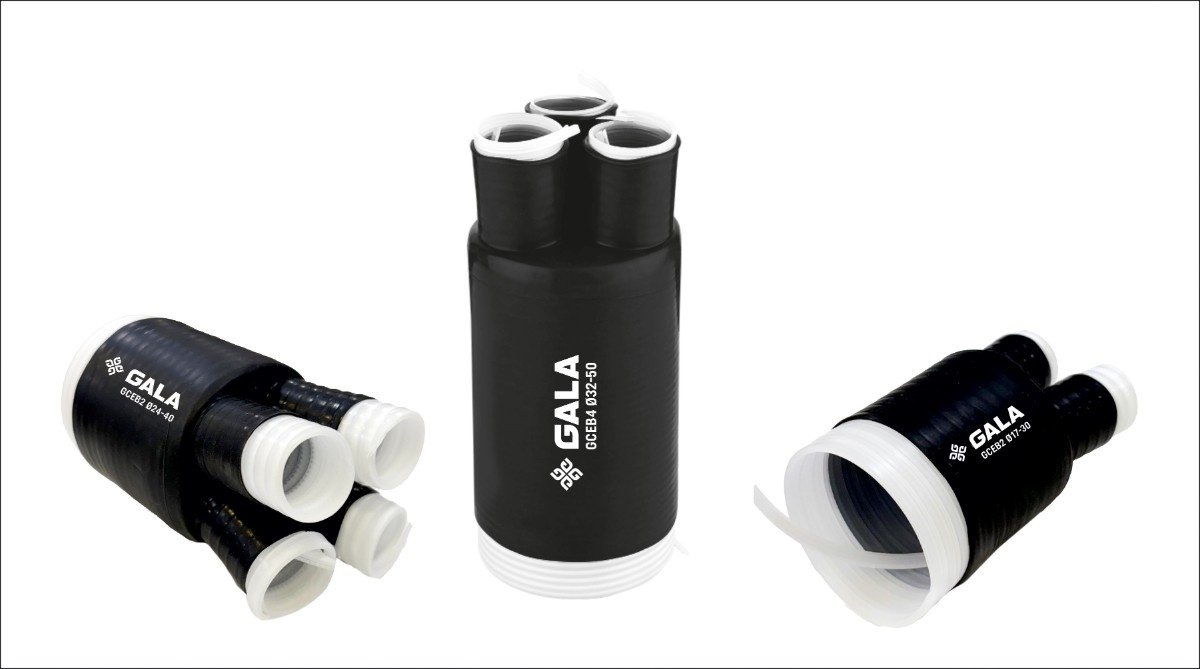

Gala Cold Shrink Breakout are factory expanded and assembled onto a removable core. It provides sealing protection or multi core cable crutch. The insulating cable breakout is made of high quality EPDM Rubber which does not contain chloride or sulfur. It covers wide range of cable sizes.
Features and Benefits
- Simple and fast installation, no tools required.
- Accommodates a wide range of cable sizes.
- Seals tight, retains resiliency for years.
- Good abrasion resistance.
- Water resistance.
- No mastic or tape required.
- Resists acids and alkalis.
- Resists ozone.
- No training required for installation.
- Resists fungus.
- Good thermal stability.
- Excellent wet electrical properties.
- Tough rubber formulation withstands backfilling.
- Operating temperature range -40 °C to 105°C
- Water resistance, meets the water seal requirements of ANSI C119.1
- No torches or heat required.

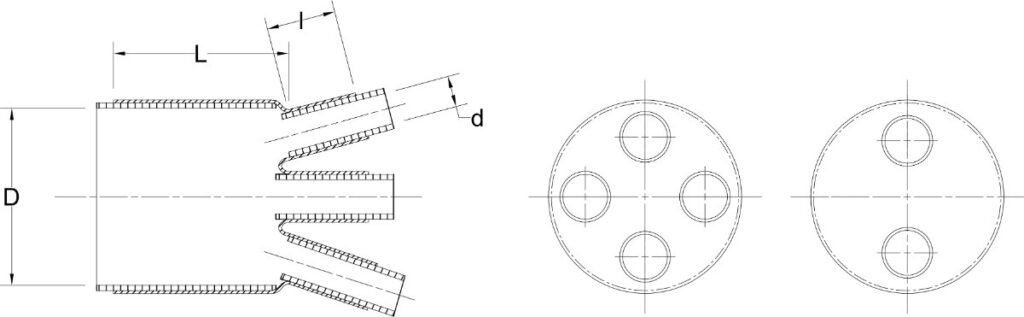

Diagram
Selection Chart
Selection Chart
| Code No. | No of Core | Ds (min) | Application Range | ds (min.) | Application Range | Lf (Max.) | lf (Max.) |
|---|---|---|---|---|---|---|---|
| GCEB2 – 1 | 2 | 47 | Ø17 – Ø30 | 20 | Ø10 – Ø14 | 50 | 30 |
| GCEB2 – 2 | 2 | 65 | Ø23 – Ø45 | 25 | Ø12 – Ø17 | 65 | 30 |
| GCEB4 – 1 | 4 | 60 | Ø24 – Ø40 | 20 | Ø10 – Ø14 | 50 | 30 |
| GCEB4 – 2 | 4 | 70 | Ø32 – Ø50 | 25 | Ø12 – Ø17 | 65 | 30 |
Technical Specification
Technical Specification
| Properties | Test Methods | Typical Value |
|---|---|---|
| Colour | Visual | Black |
| 300% Modulus | ASTM D-412 | 3.3 MPa |
| Ultimate Tensile | ASTM D-412 | 9.6 MPa |
| Ultimate Elongation | ASTM D-412 | 750% |
| Die C Tear | ASTM D-624C | 26.3 KN/m |
| Fungus Resistance | ASTM G-21 | 28 Days exposure no growth |
| Moisture Absorption 7 days @ 90°C H₂O | Internal Method | Wt. Gain 1.8% |
| Dielectric Strength | ASTM D149 | 14.3 kV/mm |
Certificates
FAQs
1. What is a Screened Separable Connector?
A Screened Separable Connector is a medium-voltage cable accessory used to connect power cables to transformers, switchgear, or other equipment. It is fully screened and separable, allowing safe installation, disconnection, and maintenance.
2. What voltage levels are Screened Separable Connectors used for?
They are commonly used for 3.6 kV to 36 kV medium-voltage applications, depending on the connector design and standards.
3. Where are Screened Separable Connectors typically used?
