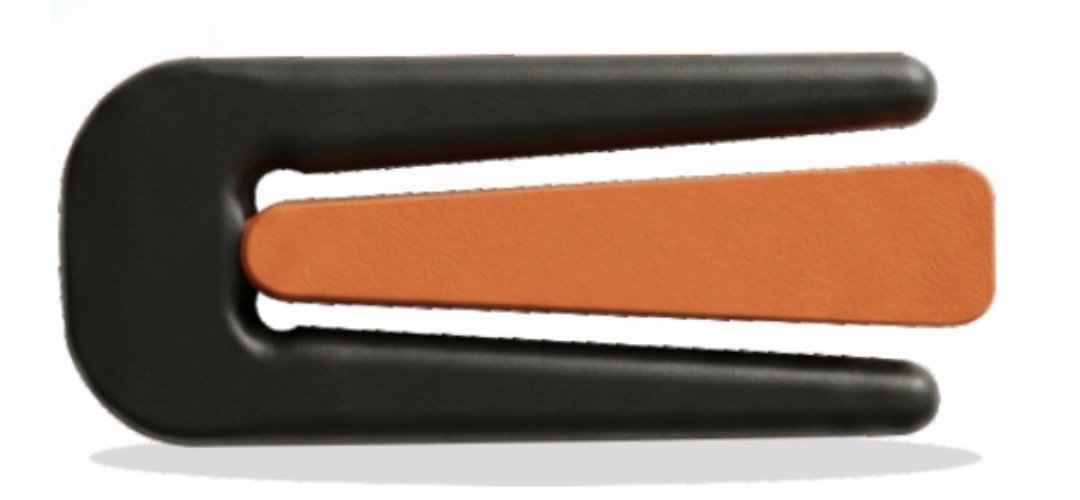

Branch Off Clip

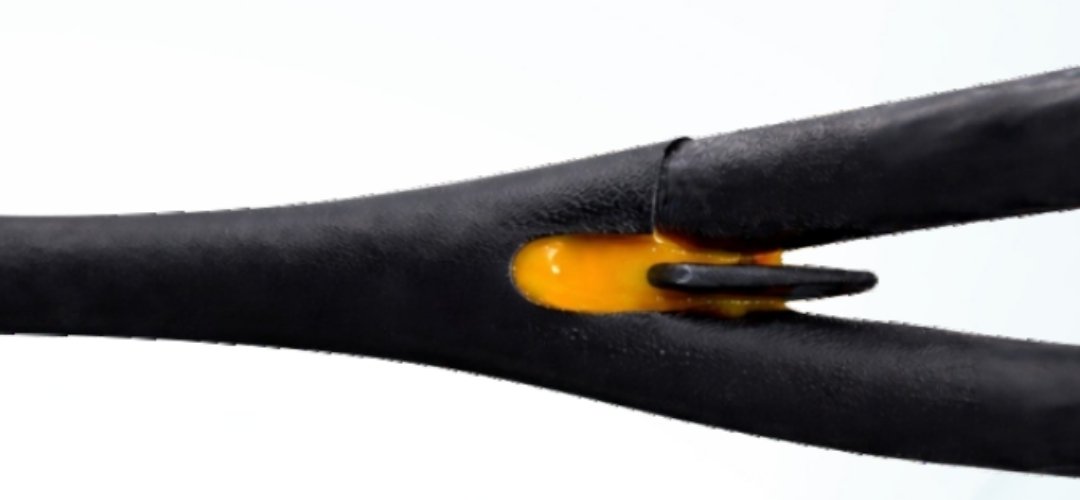

Ensure reliable cable branching with the GALA Branch Off Clip . Essential for telecom jointing, this clip creates a perfect seal between dual cable cores. Its high-quality hot melt adhesive lining melts simultaneously with the outer sleeve shrinkage, providing a robust and moisture-resistant hold. It is used to separate 2 cores of the cable that are coming out of the joint. Its outer surface is covered with a hot melt adhesive layer.
Features & Benefits
- Securely holds branch cables in position.
- Ensures uniform branch-off sealing.
- High mechanical strength.
- Quick and easy installation.
- Compatible with heat shrink branch-offs.
- Durable and corrosion-resistant.
Diagram
Selection Chart
| Gala Code | H | J | M | P | R | S | T | U | K |
|---|---|---|---|---|---|---|---|---|---|
| GBOC 1 | 2.5 | 5 | 12 | 64 | 28 | 55 | 13 | 4.5 | 28 |
| GBOC 2 | 3.0 | 6 | 12 | 110 | 60 | 85 | 15.5 | 18.5 | 54 |
| GBOC 3 | 3.0 | 6 | 13 | 125 | 85 | 103 | 17 | 30 | 79 |
Technical Specification
| Properties | Value | Standard |
|---|---|---|
| Tensile Strength | 2 N/mm² (MPa) (min.) | ASTM D638 |
| Ultimate Elongation | 700% (min.) | ASTM D638 |
| Density | 0.9 gm./cm³ (max.) | ASTM D792 |
| Hardness | 75 ± 5 Shore A | ASTM D2240 |
| Dielectric Strength | 12 kV/mm. (min.) | ASTM D149 |
| Volume Resistivity | 1 x 10¹⁴ Ohm. (min.) | ASTM D257 |
| Dielectric Constant | 5 (max.) | ASTM D150 |
* The above mentioned values are typical analytical values obtained on material when tested as per applicable standards under controlled laboratory conditions and should not be construed as Specifications for the product.
Certificates
FAQs
1. What is a Heat Shrink Shroud?
A Heat Shrink Shroud is a protective sleeve made from cross-linked polymer material that shrinks when heat is applied. It provides insulation, sealing, and mechanical protection for cables, joints, and terminations.
2. How does a Heat Shrink Shroud work?
When heat is applied using a heat gun or torch, the shroud shrinks uniformly and tightly wraps around the cable or joint, creating a secure and sealed covering.
When heat is applied using a heat gun or torch, the shroud shrinks uniformly and tightly wraps around the cable or joint, creating a secure and sealed covering.
3. What material is Heat Shrink Shroud made of?
It is typically made from cross-linked polyolefin material, often containing carbon black for UV resistance and weather protection.
